• Not for lifting

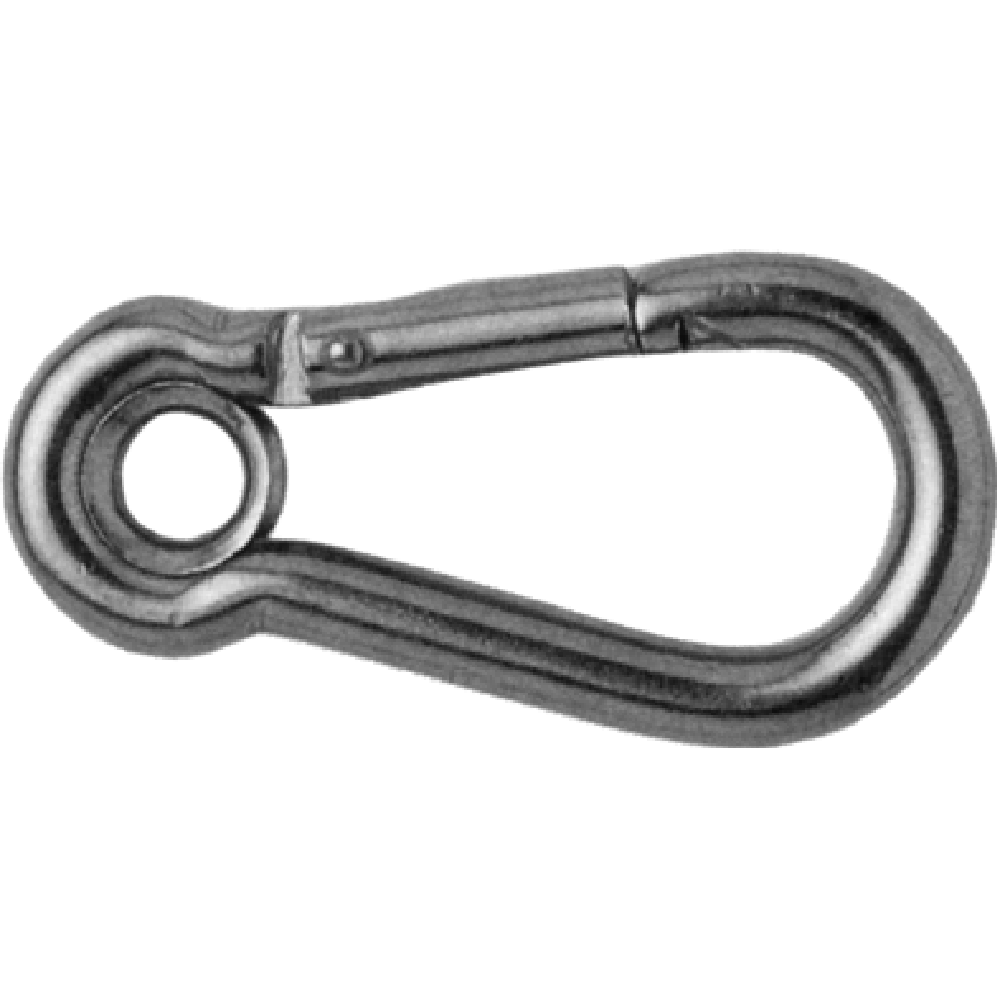

Snap hook w/eye
The calculated breaking force does not match regular breaking force, but the breaking force the hook can handle without deformation.

  • Material: AISI 316.
  • Warning: Not approved for lifting.
Select a row from the table below, then click the add to quote button
Part Code MBL
ton
Dimensions
mm
L
mm
S
mm
B
mm
Weight
kg/100pc
11.5612026690 0.57 50x5 50 5 8 2
11.5612026700 0.67 60x6 60 6 9 2.9
11.5612026705 0.75 70x7 70 7 9 4.3
11.5612026800 0.87 80x8 80 8 9 6.5
11.5612026805 1.15 90x9 90 9 9 8.9
11.5612026900 1.25 100x10 100 10 12 12.9
11.5612026910 1.28 120x11 120 12 16 16.8
11.5612026915 1.31 140x12 140 14 19 24
