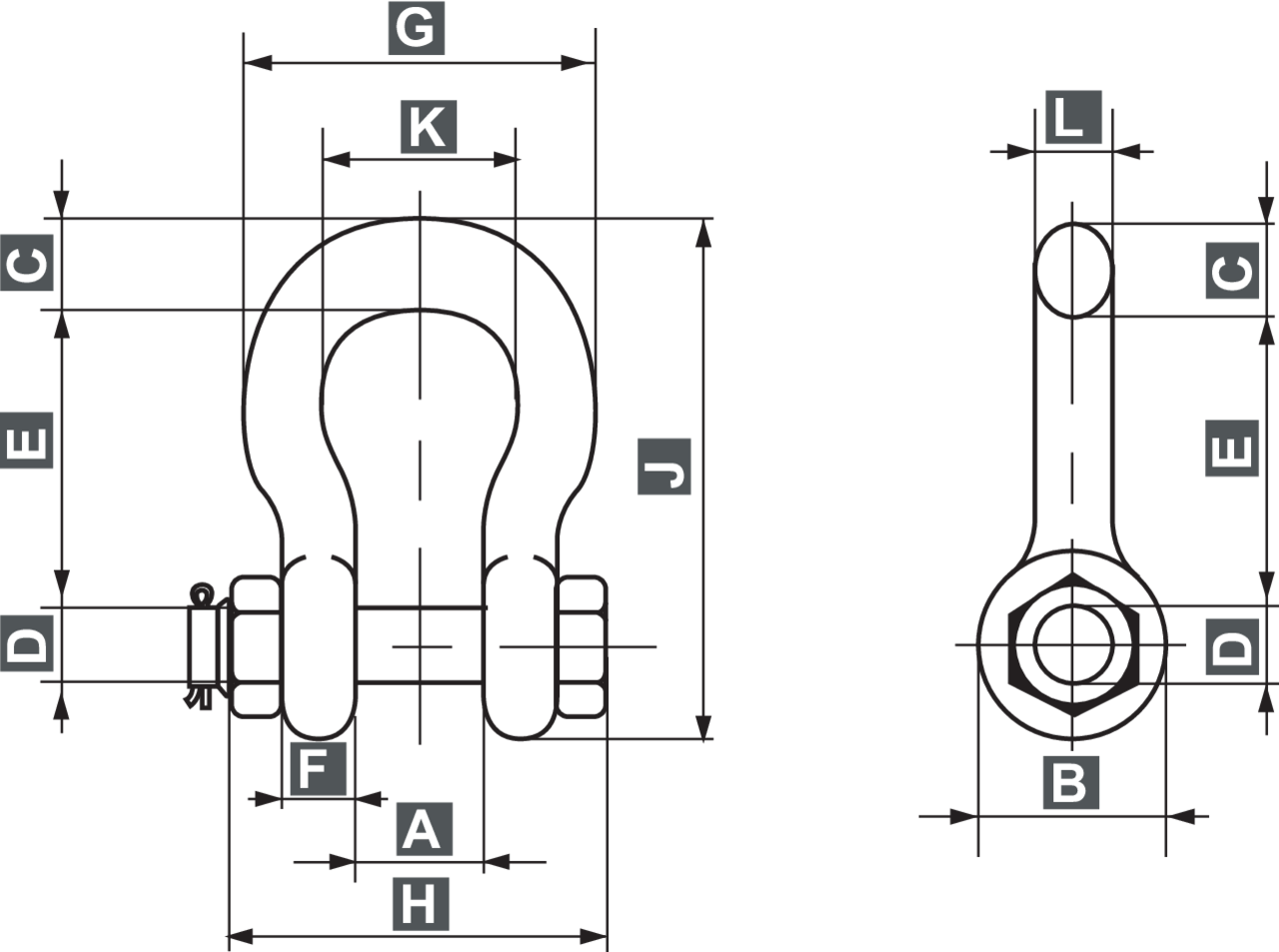

General: Shackle with bolt and nut. All sizes are individually proof loaded 2 x WLL.
Standard: US Fed. Spec. RR-C-271F/ approved according to DNV 2.7-1.
Safety Factor: 4,5:1 on sizes 2-21t, 5,4:1 on sizes 30-175t and 4:1 on sizes 200-400t.
- Material: Alloy steel.
- Marking: According to standard, CE-marked, WLL, batchnumber, serial number on sizes exceeding 200 tons, angle indicator 45°, RFID on all sizes.
- Finish: Galvanized with painted bolt.
- Standard: EN 13889
- Note: Specially ordered shackles can be marked and supplied with documentation according to DNV and Lloyds, or other certifinting unit.
- Grade: 8
