- Material: High quality steel.
- Marking: CE-marked, Type, WLL.
- Finish: Zink-plated and chromated.
Blocks with low weight, and easy to use.
After click on the “Show table” button, you will see the table with all technical details about the product.
Technical data
2-Sheaves
|
Art No
|
Code
|
Article Name
|
Headfitting type
|
Width mm
|
Sheave Dia/Width mm
|
Max wire diameter mm
|
WLL ton
|
Weight kg
|
||||||||
|
16.15TB162
|
TB162
|
D-16 *)
|
Flat plate
|
325
|
120/20
|
12
|
3
|
4,9
|
||||||||
|
16.15TB163
|
TB163
|
D-16S *) 1)
|
Swivel
|
366
|
120/20
|
12
|
3
|
4,9
|
||||||||
|
16.15TB161
|
TB164
|
D-16K *)
|
Hook
|
370
|
120/20
|
12
|
2
|
5
|
||||||||
|
|
TB233
|
ND-18 *)
|
Flat plate
|
547
|
180/27
|
18
|
10
|
16,5
|
||||||||
|
*) w/becket pin, 1) w/nuts
|
|
|
|
|
|
|
|
|
||||||||
3-Sheaves
|
Art No
|
Code
|
Article name
|
Headfitting type
|
Width mm
|
Sheave Dia/Width
|
Max wire diamenter mm
|
WLL ton
|
Weight kg
|
||||||||
|
16.15TB172
|
TB172
|
TR-17 *)
|
Flat plate
|
325
|
120/20
|
12
|
6
|
7,3
|
||||||||
|
|

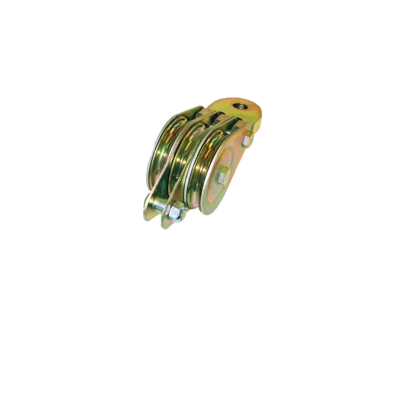

TB192
|
NT-19 *)
|
Flat plate
|
550
|
180/27
|
18
|
16,5
|
24
|
||||||||
|
*) w/becket pin
|
|
|
|
|
|
|
|
|
||||||||
4-Sheaves
|
Art No
|
Code
|
Article Name
|
Headfitting type
|
Width mm
|
Sheave Dia/Width mm
|
Max wire diameter mm
|
WLL ton
|
Weigth kg
|
||||||||
|
|
TB202
|
NF-20 *)
|
Flat plate
|
335
|
120/20
|
12
|
8
|
10
|
||||||||
|
|
TB212
|
NF-21 *)
|
Flat plate
|
580
|
180/27
|
18
|
22,5
|
34
|
||||||||
|
*) w/becket pin
|
|
|
|
|
|
|
|
|
||||||||
5-Sheaves
|
Art No
|
Code
|
Article name
|
Headfitting type
|
Width mm
|
Sheave Dia/Width mm
|
Max wire diameter mm
|
WLL ton
|
Weight kg
|
|
|
TB302
|
NF-30 *)
|
Flat plate
|
825
|
282/36
|
16
|
40
|
80
|
|
*) w/becket pin
|
||||||||
