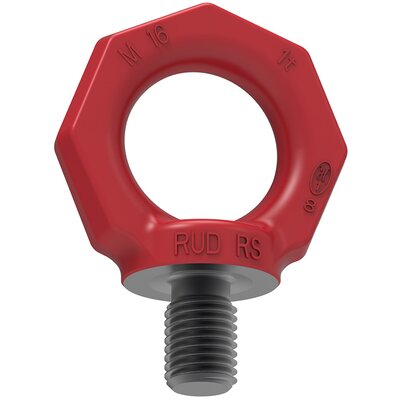

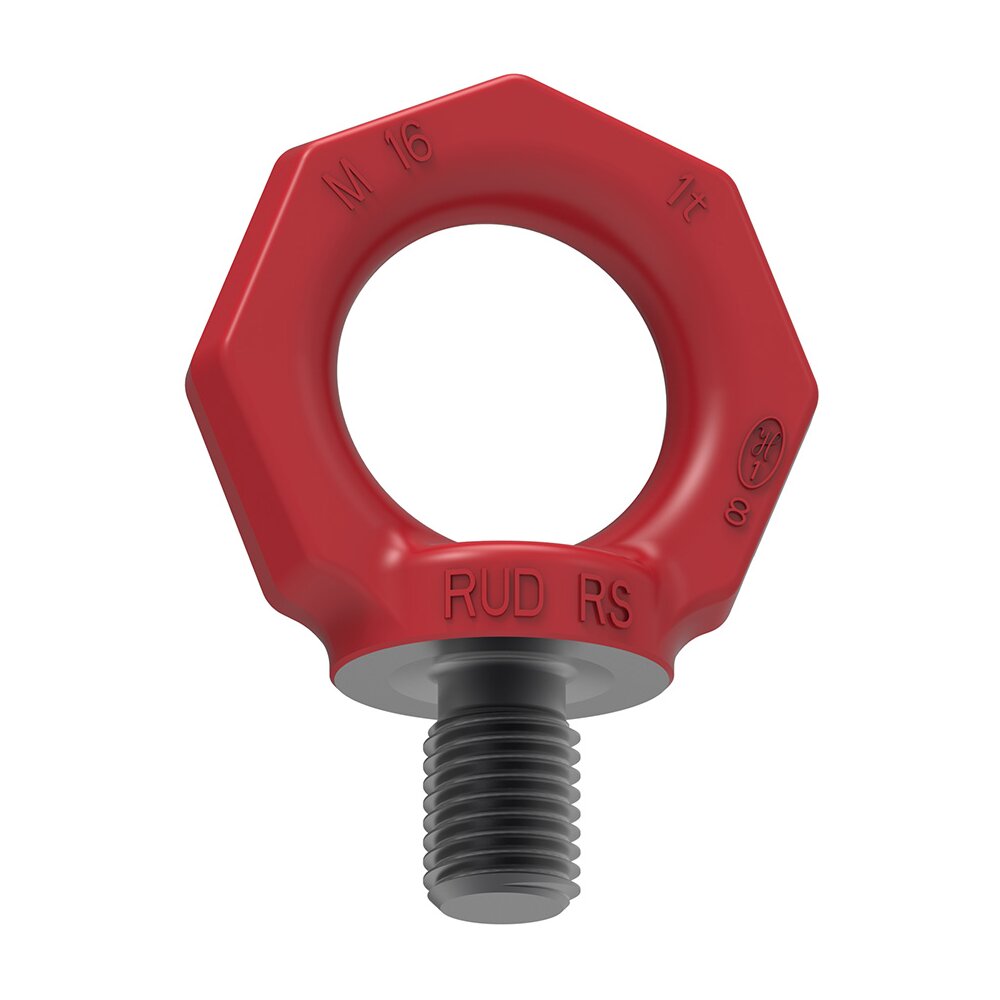

Lifting Eye Bolt RUD RS-M

Octagonal lifting eye approved for lifting. Rate for use in both single and multi-part lifts.

Show more

Part code:

Octagonal lifting eye approved for lifting. Rate for use in both single and multi-part lifts.

  • Material: Forged of high strength steel.
  • Marking: According to standard, CE-marked, WLL, indication for the most unfavourable case
  • Temperature range: -40°C up to 200°C
  • Standard: EN 1677-1
  • Safety factor: 4:1
  • Grade: 8

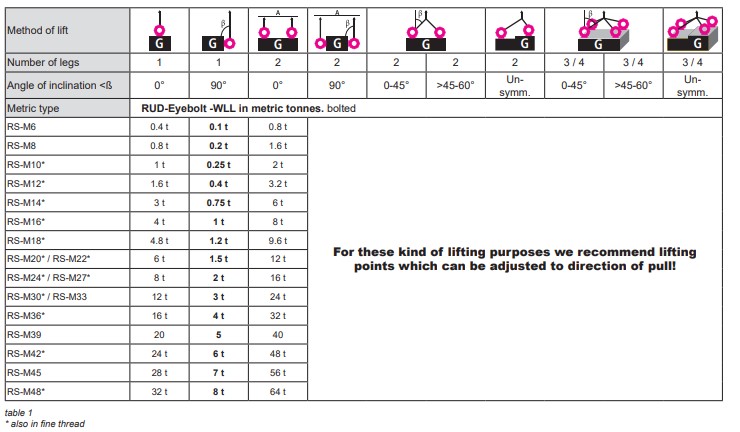

RUD Load table RS-M

Download Document
