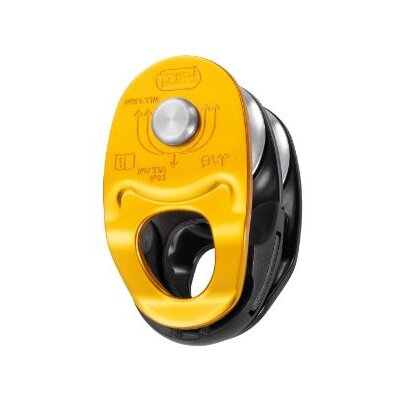

High-efficiency double pulley
The JAG double pulley is designed for use with the JAG TRAXION double progress capture pulley to make a 4:1 haul system. Sheaves mounted on sealed ball bearings for excellent efficiency.
- Sheave type: sealed ball bearings
- Sheave diameter: 25 mm
- Maximum working load: 2 × 1,5 kN × 2 = 6 kN
- Breaking strength: 2 × 4 kN × 2 = 16 kN
- Efficiency: 91 %
- Material: Aluminum, nylon
- Marking: According to standard, CE-marked, UKCA-marked
- Temperature range: -40°C up to +80°C
- Standard: EN 12278
