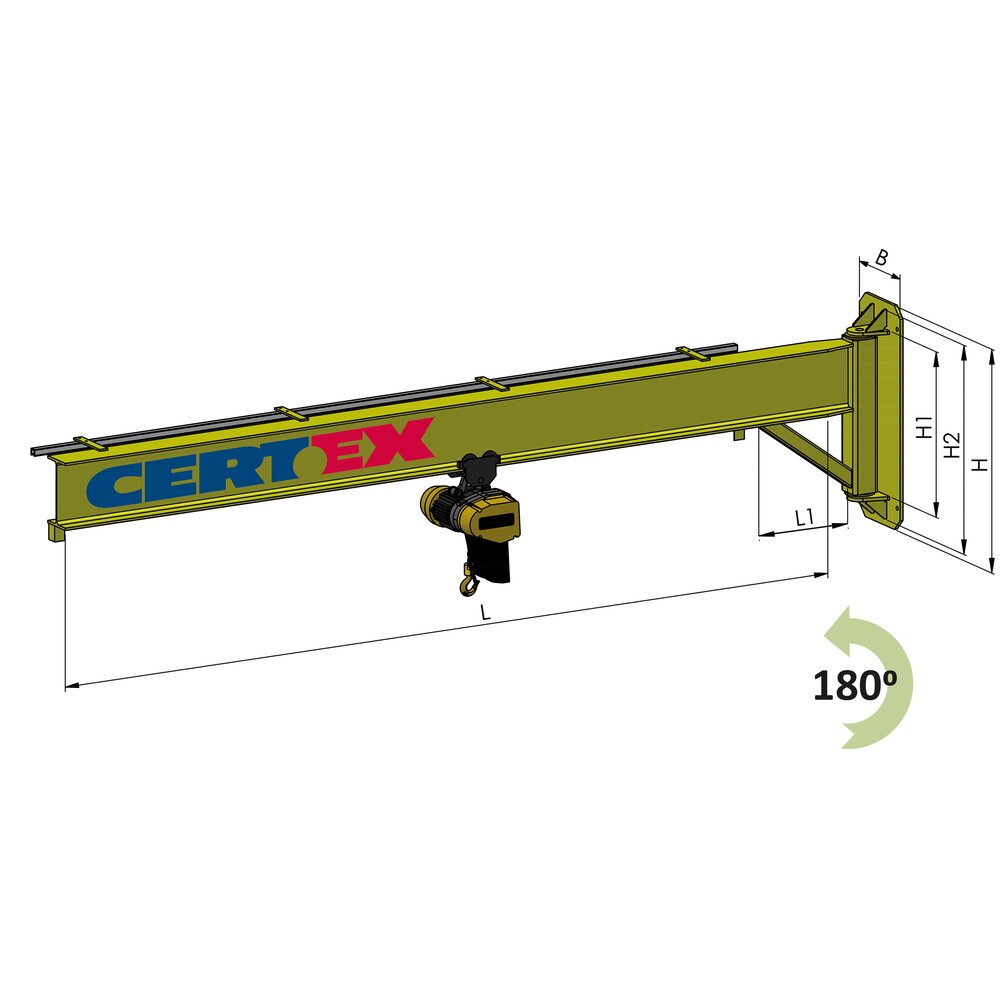

Wall Mounted Jib Crane Type VK-IL


General: We recommend this type of wall jib crane when the lifting height is limited. Our standard programme has been designed in load groups from 125 kg up to 3200 kg. This type of jib crane has been designed without counter bracing which maximises the lifting height considerably.
All these wall mounted swing cranes have been designed with an IPE-profile jib arm which is ideal for use together with an electrical trolley. If using a manual trolley we can offer to deliver the jib arm mounted with a smooth running C-profile.
The jib cranes are assembled with a separate C-profile for cable, hose etc.

Proof load: Usually 1,5 x WLL.

  • Material: Beam and plate of high-strength structural steel.
  • Marking: Working load limit (WLL), CE marking, manufacturer, serial number, year of manufacturing, etc.
  • Finish: Yellow painted. Other treatments available on request.


Show more filters

Select the variant of your choice. Add it in the cart for purchase or request quotation.
