• Not for lifting

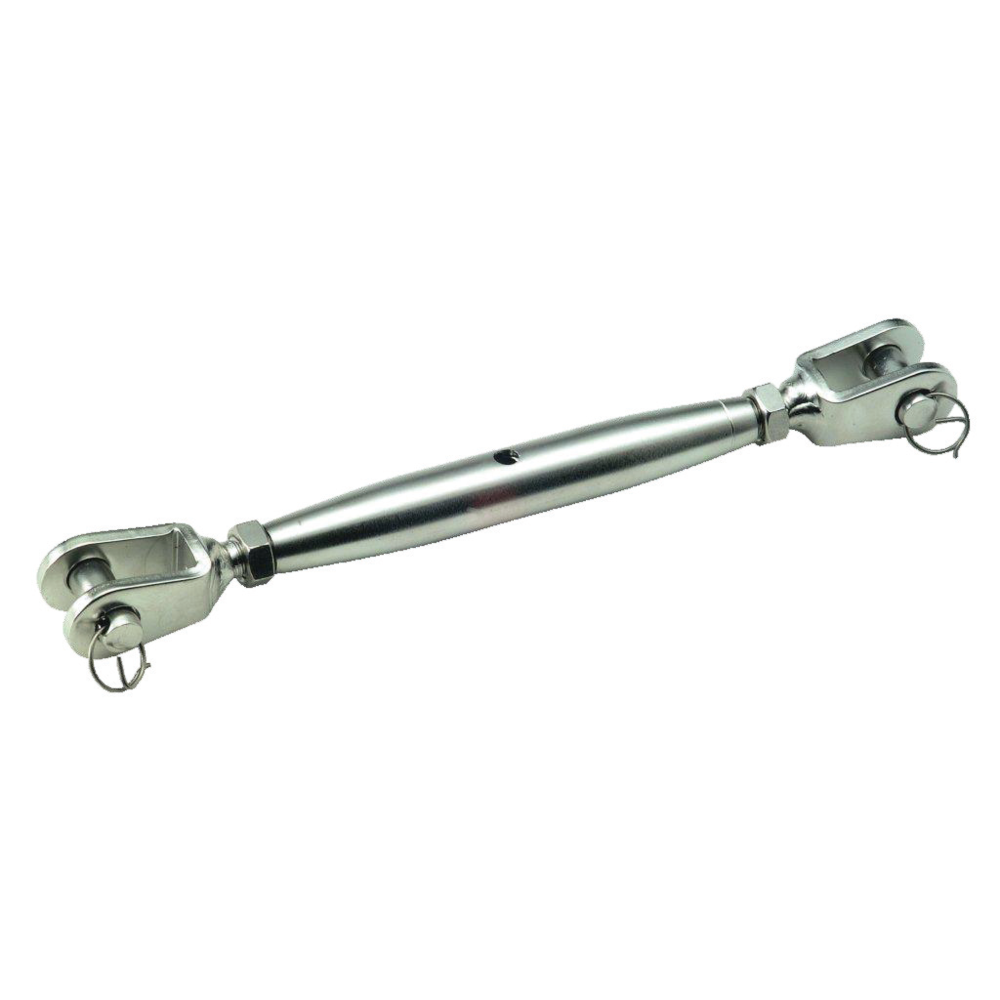

We deliver a quality turnbuckles in stainless steel - Jaw/Jaw AISI 316.

  • Material: AISI 316.
riggskrue
Select a row from the table below, then click the add to quote button

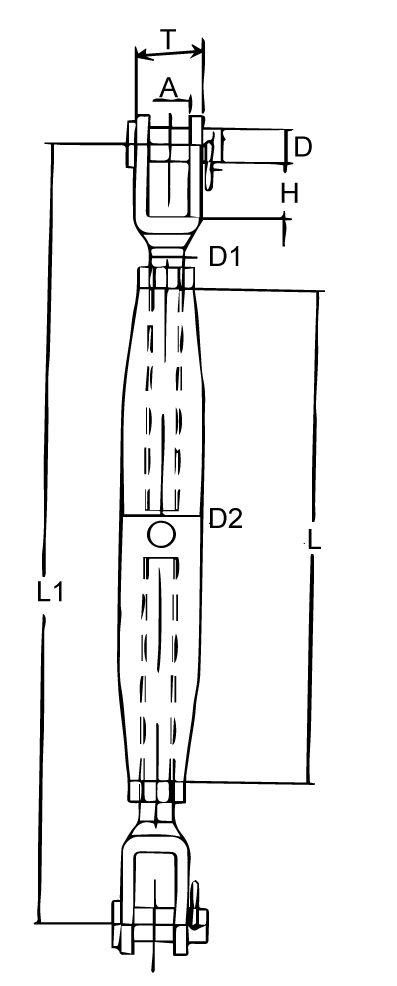

Part Code Size Length mm Max Length mm Min Wire Ø
mm
Bolt Ø
mm
A
mm
D
mm
D1
mm
H
mm
L
mm
L1
mm
11.5112891300 M6 205 140 3 5,0 7,5 6 10 10 95 150
11.5112891500 M8 235 160 4 6,0 11 8 13 11 105 165
11.5112891700 M10 265 185 5 8,0 12,0 9 17 14 125 190
11.5112892100 M12 380 260 7 11,0 14,0 12 21 20 150 245
11.5112892500 M19 565 410 10 16,0
11.5112892300 M16 460 351 8 12,7 17 16 26.5 26 190 310
