The IP10 series vertical lifting clamps are used for the lifting, turning, moving or vertical transfer of sheet, plates, or fabrications from horizontal to vertical and down to horizontal (180°) as needed. Usually used as a single point pick or when used with a spreader beam with multiple vertical drop lines. Available in a variety of models:

  • IP10 - Standard clamp for materials with a surface hardness to 363HV10 (345 HB).
  • IP10J - Larger jaw opening.
  • IP10S - For use with Stainless Steel material.
  • IP10H - For use with materials with a surface hardness to 472HV10 (450 HB).

Features:

  • Available in capacities of .5 thru 30 metric tons
  • Higher Working Load Limits are available upon request.
  • Wide variety of jaw openings available: 0 to 155 mm.
  • Welded alloy steel body for strength and smaller size. Forged alloy components, where required.
  • Individually Proof Tested to 2 times the Working Load Limit with certification.
  • User manual and test certificate included with each clamp.
  • Full 180° turning range for material transfer, turning or moving.
  • Lock open, lock closed ability with latch for pretension on material and then release of material.
  • For plate surface hardness till 279HV10, only 5% min. WLL is needed.
  • Maintenance and repair kits are available.
  • All sizes are RFID EQUIPPED.
  • Material: Alloy Steel.
  • Marking: According to standard, CE-marked
  • Standard: EN 13155
  • Warning: A minimum load of 10% of the WLL is required. Except for WLL 500 kg which requires a minimum load of 5% of WLL.
Crosby IP10 Vertical Lifting Clamp with fixed hoisting eye

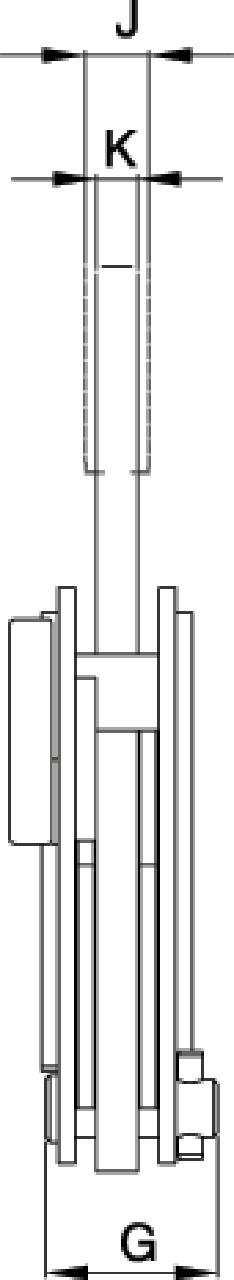

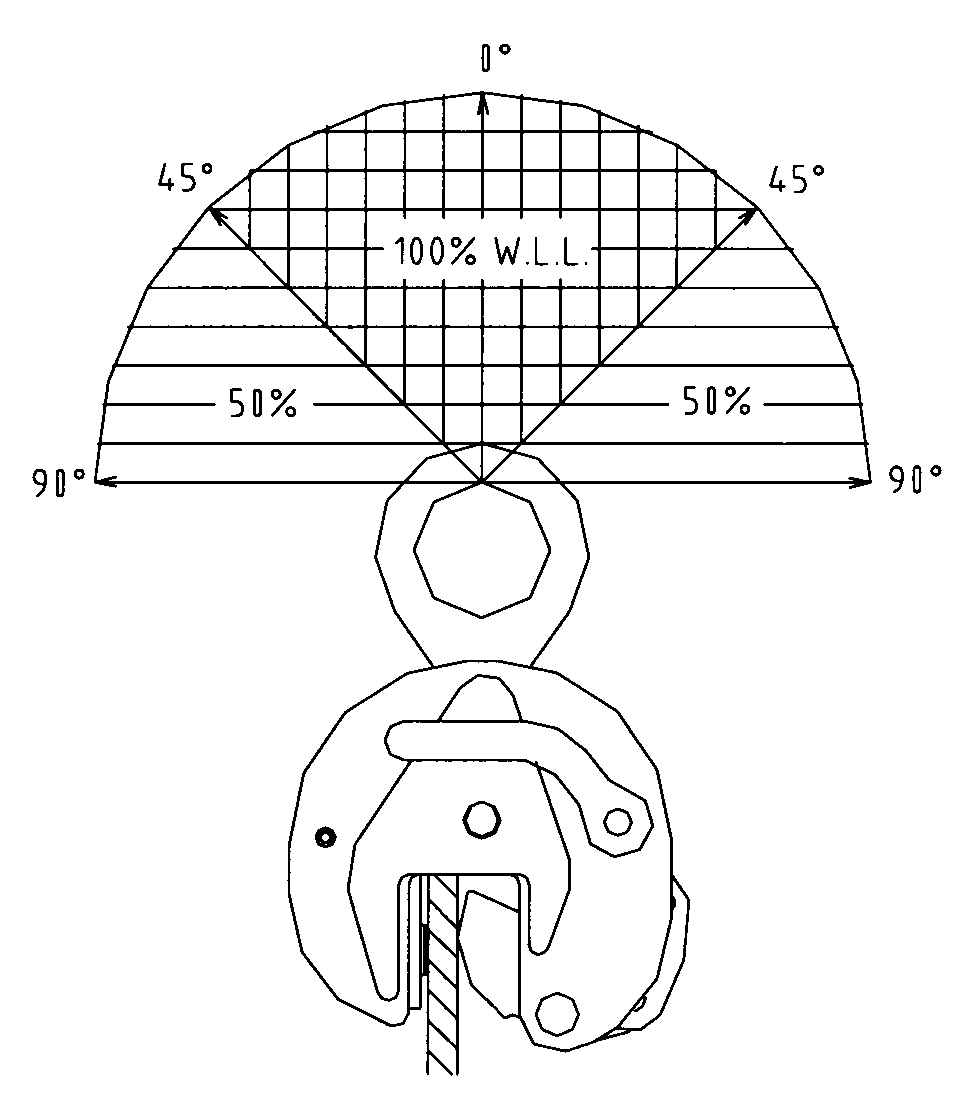

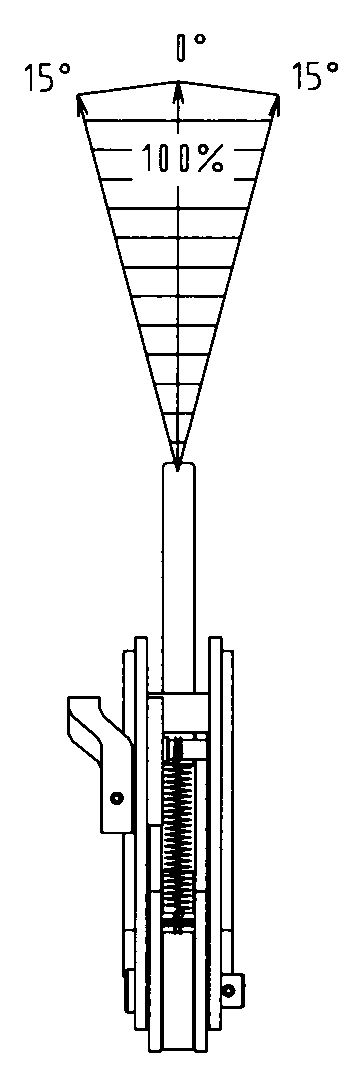

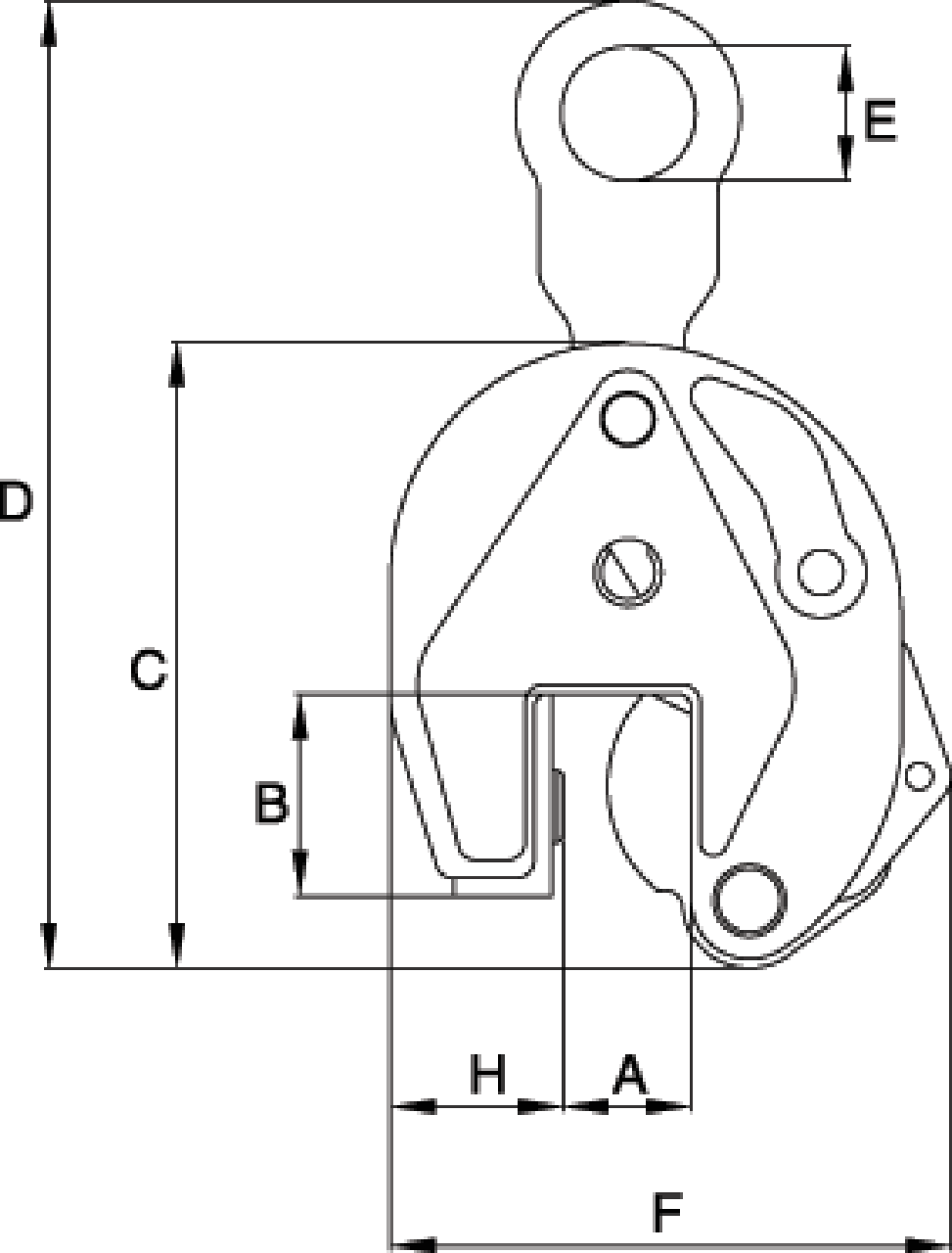

Crosby IP10 Vertical Lifting Clamp measurements Crosby IP10 Vertical Lifting Clamp thickness measurements Crosby IP10 Vertical Lifting Clamp lifting angle for optimal lifting capacity Crosby IP10 Vertical Lifting Clamp lifting angle
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Jaw width
mm
I P Model. B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
H
mm
J
mm
K
mm
Weight
kg
CAD
06.15005IP10 0.5 15-30 0.5-IP10 44 130 203 40 115 42 28 - 11 1.8 -
06.15010IP10 1 0-20 1-IP10 45 139 212 40 127 42 38 - 11 2.2 -
06.15020IP10 2 0-35 2-IP10 78 201 330 70 188 64 55 - 16 7.6 -
06.15030IP10 3 0-40 3-IP10 100 253 434 75 222 78 60 - 20 13.8 -
06.15045IP10 4.5 0-40 4.5-IP10 100 253 434 75 227 82 65 - 20 15 -

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
