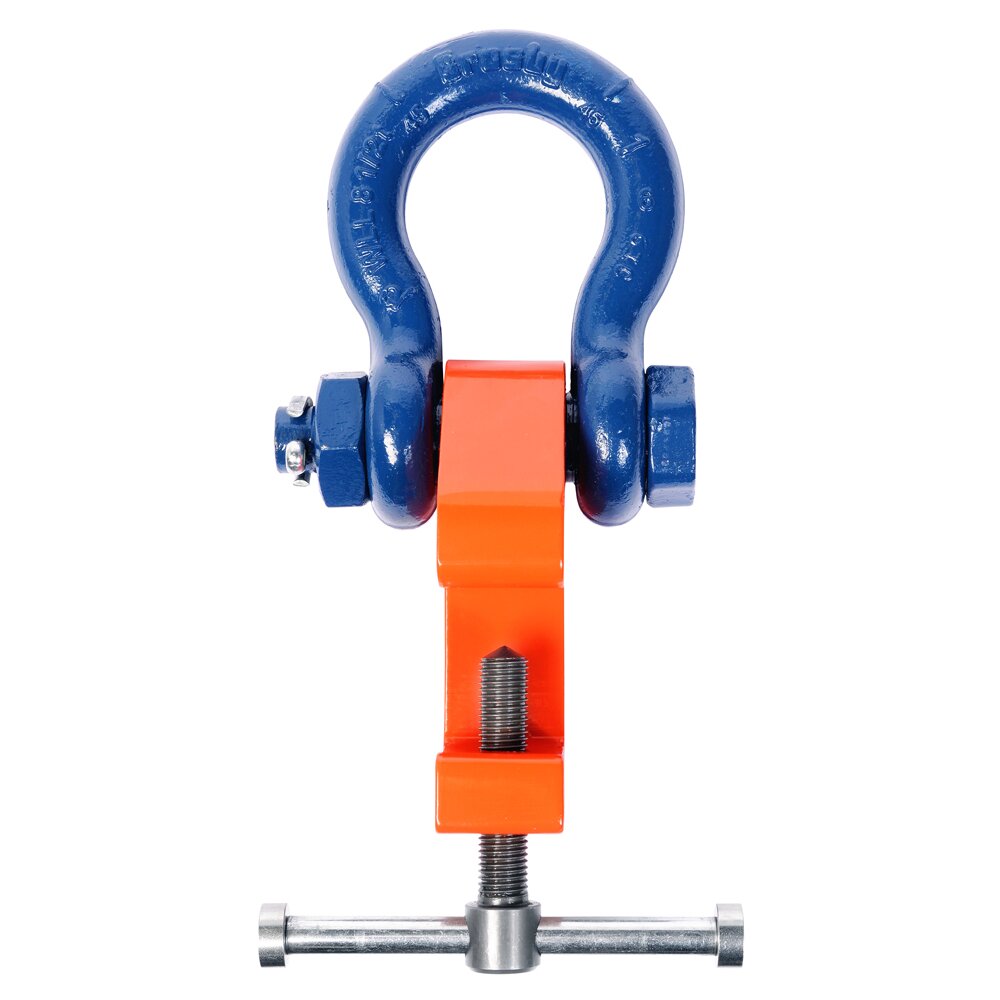

Ship Buidling Clamp - IPBTO10

The IPBTO10 shipbuilding clamp is used as a temporary tackle eye in spaces which have been reinforced with HP (bulb) profiles such as engine rooms and shipsections. This clamp is fitted with a screwed spindle for easy attachment of the clamp. The moment a load is applied, the clamp is automatically fixed.

• Available in capacities of 1.5 thru 6 metric tons.
• Wide variety of jaw openings available: HP 160mm to HP 430mm
• Welded alloy steel body for strength and smaller size. Forged alloy components, where required.
• Individually Proof Tested to 2 times the Working Load Limit with certification.
• User manual with test certificate is included with each clamp.
• Maintenance and repair kits are available

  • Material: Alloy steel.
  • Marking: According to standard, CE-marked
  • Standard: EN 13155
