Standard: EN 13411-7

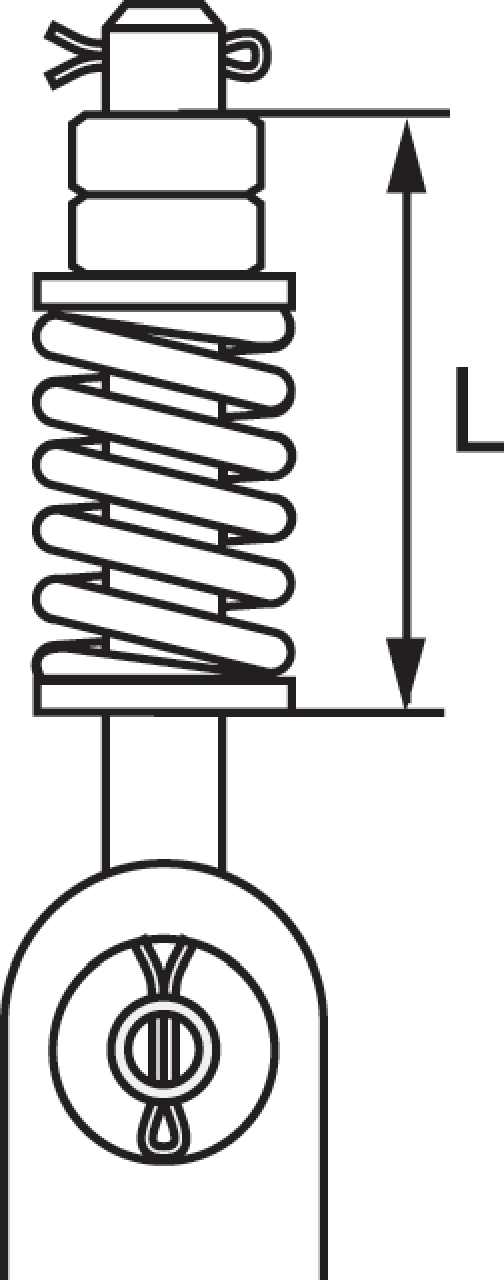

  • Features: Wedge Suspension kit Type D with Eyebolt, Spring, nuts and split pin
  • Material: Galvanised Steel
  • Marking: According to standard, Size and CE mark
  • Finish: Galvanised
  • Standard: EN 13411-7
15315_d_lom_new_225mm
3050_screw_Dm_225mm(1)
Select a row from the table below, then click the add to quote button
Part Code Code Diameter
mm
L
mm
Weight
kg
CAD
07.240608D 3070 6-8 167 1.4
På forespørsel 3071 9-11 173 2.4
07.241214D 3072 12-14 202 4.7
På forespørsel 3073 15-17 248 8.2
På forespørsel 3074 18-20 254 11
