Standard: EN 13411-7





  • Features: Wedge Suspension kit Type A with Eyebolt nuts and split pin
  • Material: Galvanised Steel
  • Marking: According to standard, Size and CE mark
  • Finish: Galvanised
  • Standard: EN 13411-7
15315_a_new_225mm

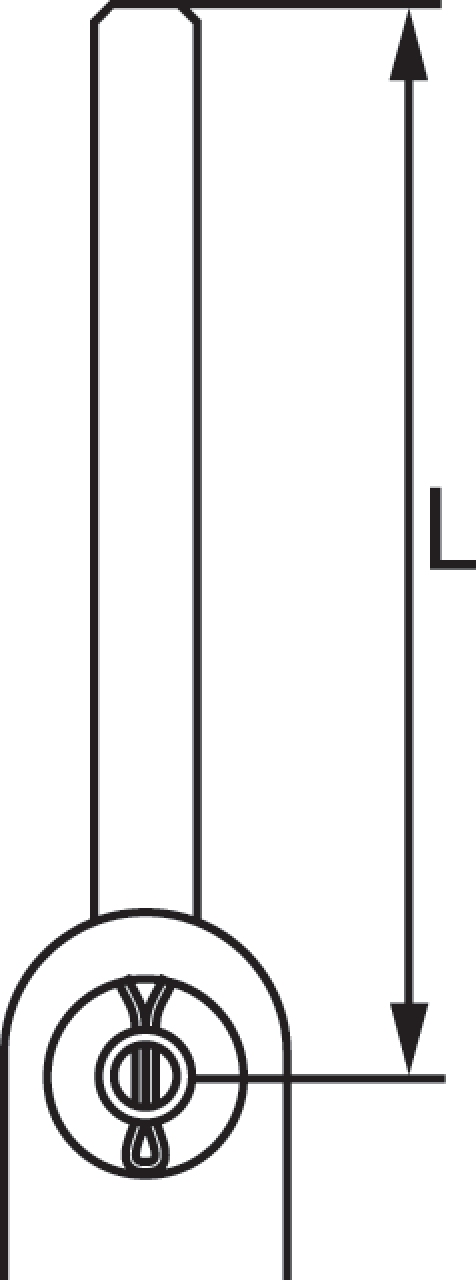

3050_screw_Am_225mm(1)
Select a row from the table below, then click the add to quote button
Part Code Code Thread Diameter
mm
L
mm
Weight
kg
CAD
07.240608A 3060 M12 6-8 320 0.75
07.240911A 3061 M16 9-11 320 1.6
07.241214A 3062 M20 12-14 400 3.2
07.241517A 3063 M24 15-17 450 5.3

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
