Gunnebo Industries
  • Not for lifting

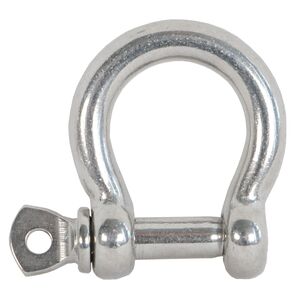

General: Shackle for different applications.


  • Material: AISI 316.
  • Warning: Not approved for lifting.
Select a row from the table below, then click the add to quote button
Part Code Pin diameter
mm
D
mm
A
mm
C
mm
D2
mm
Weight
kg
11.5612045000 5 5 10 17 10 0.01
11.5612045100 6 6 12 24 12 0.02
11.5612045200 8 8 16 30 16 0.05
11.5612045300 10 10 20 38 20 0.12
11.5612045500 12 12 26 50 24 0.2
11.5612045600 14 12 26 50 24 0.2
11.5612046000 16 13 24 52 33 0.39
11.5612046100 20 16 28 65 40 0.6
