• Not for lifting

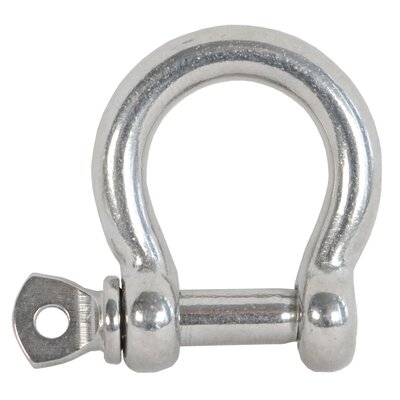

General: Shackle for different applications.


  • Material: AISI 316.
  • Warning: Not approved for lifting.
Select a row from the table below, then click the add to quote button
Part Code Pin diameter Dia. bult D1
mm
D1
mm
D
mm
A
mm
C
mm
e
mm
D2
mm
Weight
kg
11.5612048000 5 M5 5,0 5 10 18 15 10 0.01
11.5612048100 6 M6 6,0 6 12 22 17 12 0.02
11.5612048200 8 M8 8,0 8 16 30 23 16 0.05
11.5612048300 10 M10 10,0 10 20 36 27 20 0.12
11.5612048500 12 M12 12,0 12 25 47 37 26 0.21
