• Not for lifting

We deliver a quality turnbuckles in stainless steel - Jaw/Jaw AISI 316.

  • Material: AISI 316.
riggskrue
Select a row from the table below, then click the add to quote button
Part Code MBL
t

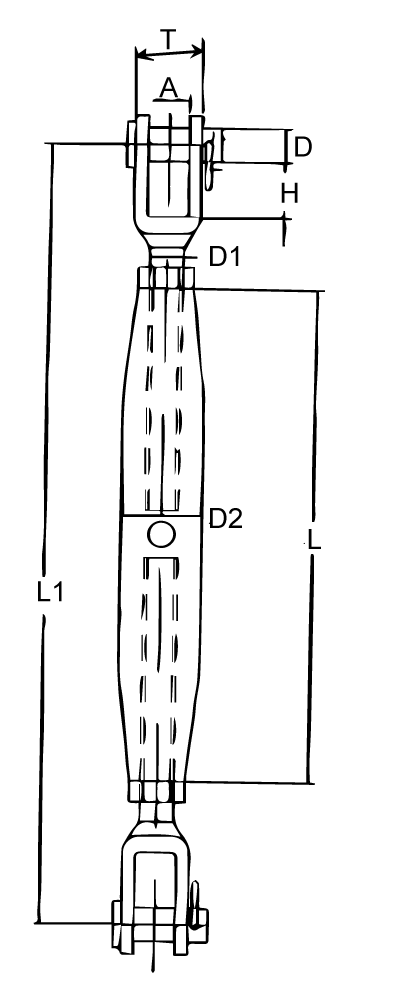

Size Wire diameter Length mm Max Length mm Min Bolt diameter
mm
A
mm
D
mm
D1
mm
H
mm
L
mm
L1
mm
CAD
11.5112891300 1.25 M6 3 205 140 5,0 7,5 6 10 10 95 150
11.5112891500 1.3 M8 4 235 160 6,0 11 8 13 11 105 165
11.5112891700 2.35 M10 5 265 185 8,0 12,0 9 17 14 125 190
11.5112892100 5.1 M12 7 380 260 11,0 14,0 12 21 20 150 245
11.5112892500 8 M16 8 460 351 12,7 17 16 26.5 26 190 310
11.5112892300 13 M19 10 565 410 16,0

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
