Crosby

Design: Chain swivels with out bearing. According to Federal Specification RR-C-271D.

  • Material: Alloy steel
  • Marking: WLL
  • Finish: Galvanized
  • Note: The swivels are positioning devices and are not intended to rotate under load. For load swivels, see ball bearing swivels.
  • Safety factor: 5:1
G-402 regular swivel

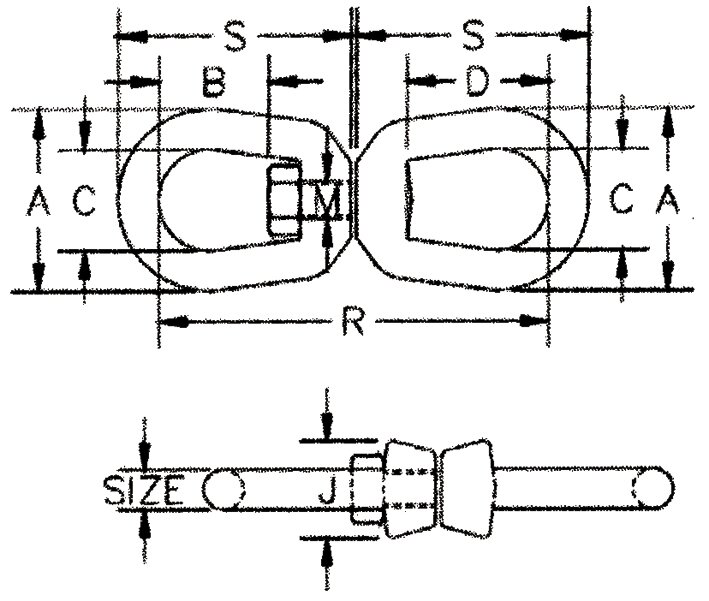

Drawing G-402 regular swivel
Select a row from the table below, then click the add to quote button
Part Code Diameter
mm
WLL
ton
A
mm
B (mm) C (mm) D
mm
J (mm) M
mm
R (mm) S (mm) Weight
kg
CAD
11.451016019 6 0.39 31.8 17.5 19.1 26,9 17,5 7,85 74,5 42,9 0.1
11.451016037 8 0.57 41.4 20.6 25.4 31,8 20,6 9,5 90,0 52,0 0.18
11.451016055 10 1.02 51 23.9 31.8 38,1 25,4 12,7 109 63,5 0.32
11.451016073 13 1.63 63.5 33.3 38.1 51,0 33,3 16,0 138 81,0 0.6
11.451016091 16 2.36 76 39.5 44,5 60,5 38,1 19,1 167 98,5 1.13
11.451016117 19 3.27 89 44.5 51,0 67,0 47,8 22,4 183 109 1.82
11.451016135 22 4.54 102 52 57,0 77,5 54,0 25,4 213 127 2.83
11.451016153 25 5.67 114 58.5 63,5 89,0 60,5 28,7 245 146 4.06
11.451016199 32 8.16 143 68.5 79,5 93,5 76,0 38.1 291 172 7.42
11.451016215 38 20.5 180 98.5 104 98.5 95.2 57,0 424 252 20.8
