Gunnebo Industries
  • Features: DNV Approved.
  • Material: Quenched and tempered alloy steel grade 8.
  • Marking: Code and grade.
  • Finish: Painted.
  • Grade: 8
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton

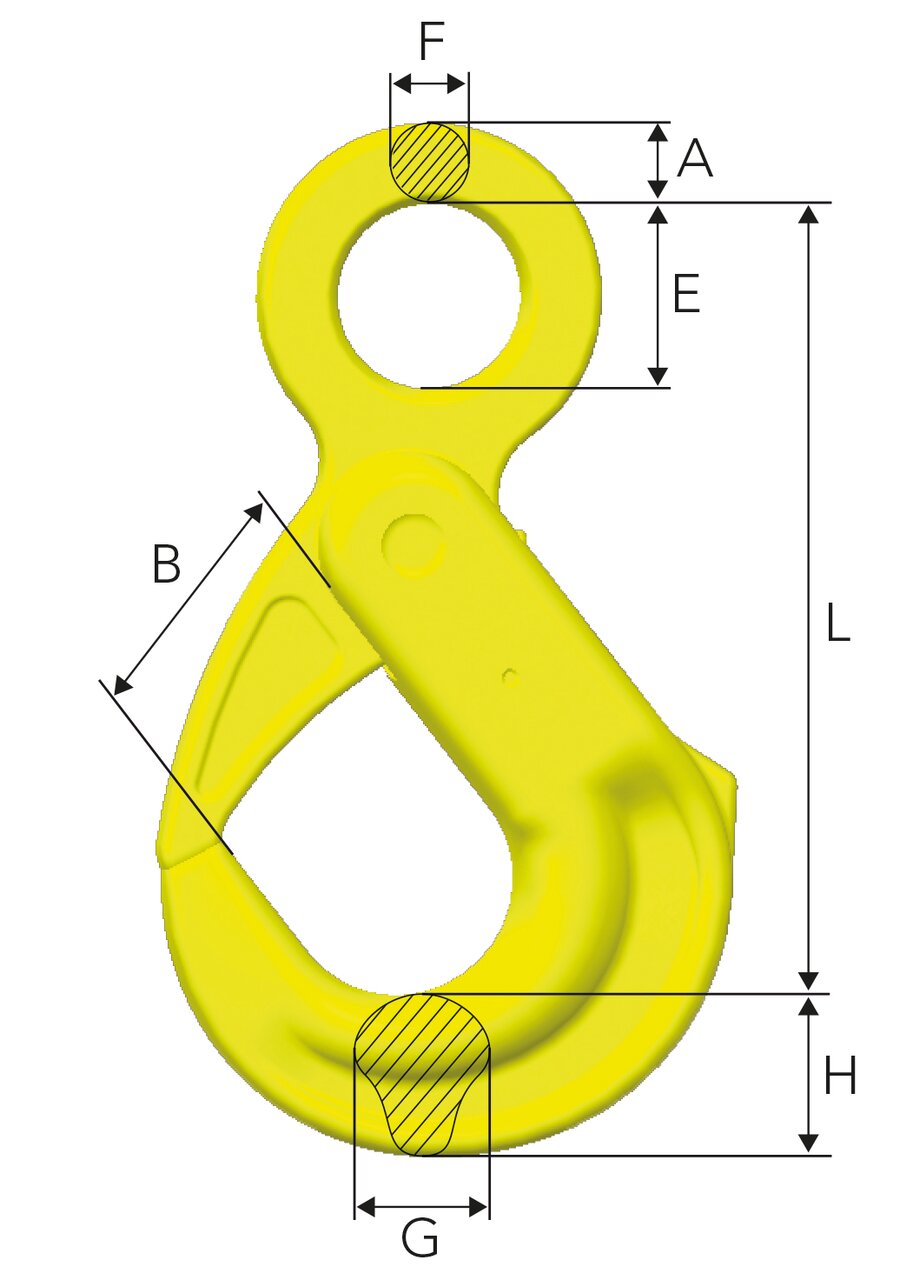

WLL (ton) 4:1 L (mm) B (mm) E (mm) F (mm) G (mm) H (mm) Weight
kg
CAD
11.15Z101015 BK-26-10 OS 21.6 27,3 342 100 80 25 54 69 14.5
11.15Z101364 BK-32-8 OS 26.2 32,8 400 120 90 30 62 86 23.4
