Crosby

General: Pad eyes are provided on either side of hook as cable guide. The cable is passed through a hole drilled in the latch that assists in allowing the "remotely operated" cable to open latch.

  • Material: Alloy steel grade 8.
  • Marking: Code
  • Finish: Painted with fluorescent yellow.
  • Safety factor: 4:1
  • Grade: 8
Crosby L562A

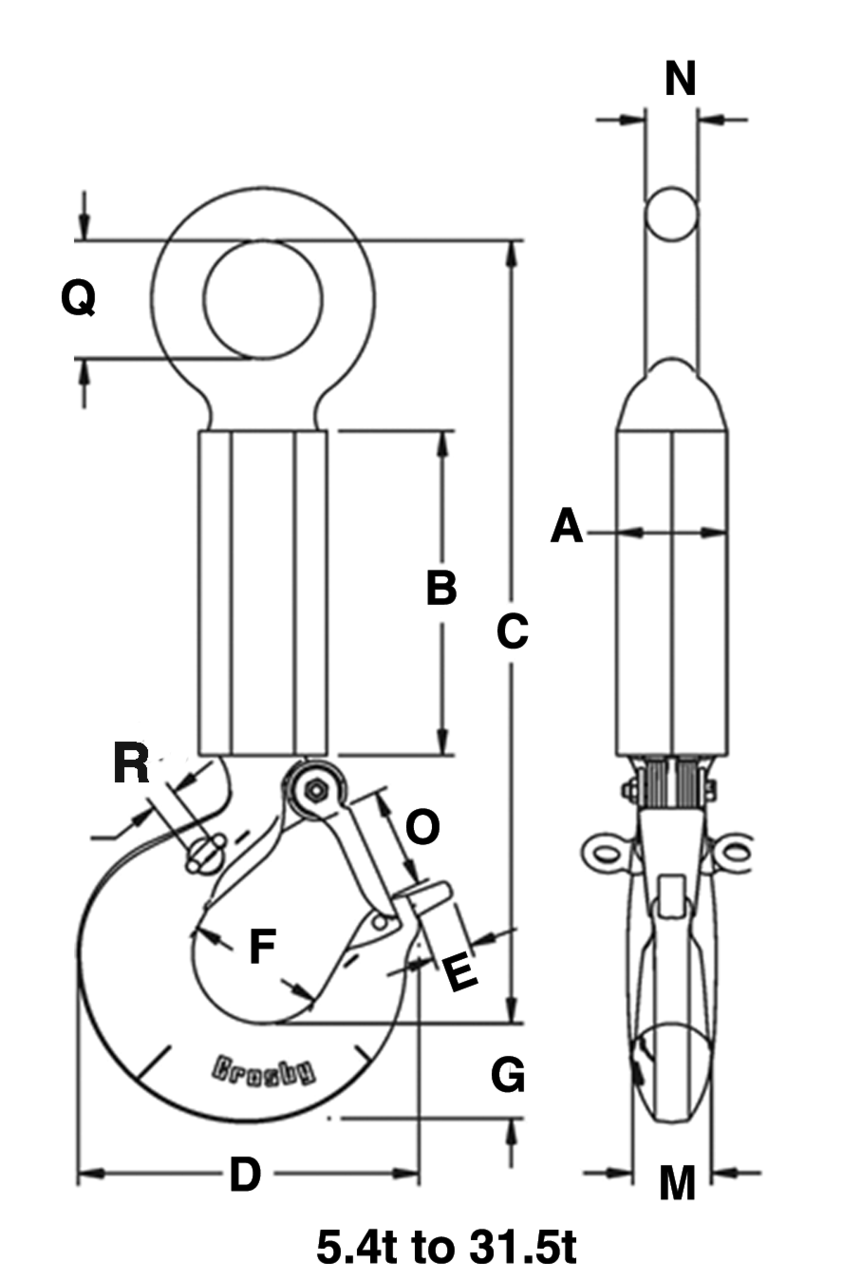

L562AdwgSm
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
N (mm) O (mm) A
mm
D
mm
C
mm
E
mm
Q
mm
R
mm
M
mm
G
mm
F
mm
Weight
kg
CAD
08.14054 ROVH5,5 5.4 22 35 65 123 421 250 51 6,4 29 38 51 9.5
08.14115 ROVH11,5 11.5 32 53 65 192 518 250 76 9,7 41 57 76 15
08.14216 ROVH16 16 35 58 65 212 550 250 79 9,7 49 66 83 18
08.14220 ROVH22 22 40 77 85 263 608 250 91 19 60 76 108 31
08.142315 ROVH31,5 31.5 48 106 85 346 660 250 92 19 76 92 127 44
08.14237 ROVH37 37 47 95 80 357 828 235 134 19 76 116 137 44
08.14245 ROVH45 45 47 108 80 392 865 235 134 19 83 129 152 90
På forespørsel ROVH60 60 53 130 90 470 941 215 150 19 99 152 178 131
På forespørsel ROVH100 100 69 124 140 584 1,185 300 190 19 140 218 173 303
På forespørsel ROVH150 150 92 127 150 619 1,233 230 309 19 152 232 171 395
På forespørsel ROVH175 175 102 - 170 678 1,326 255 300 19 178 248 191 515
*Utilize Crosby G-2140 shackle as eye.
