Powertex

POWERTEX Load binders PLB are made of strong Grade 80 quality having safety latch shortening hooks at each end.

  • Safe – Powertex Load binders are strong and reliant and comply to EN12195-3
  • Safe – PLB Load binder is individually proof load tested 1,25 x LC before delivery
  • Each load binder is lubricated and function tested before delivery to assure efficiency at use
  • Steel casted ratchet handle optimized for a standard hand force of 50 daN
  • Forge shaped tube ends forms a light and strong center hub
  • The closed body design protects the threads from damage and at the same time prevent dirt from entering into the center body
  • Hot forged quenched and tempered eye bolts and hooks
  • Shortening hooks are equipped with latches to prevent unintentional unhooking
  • Red powder painted for good corrosion protection and quick identification as Powertex original equipment
  • Intended to be used with Powertex lashing chain assembly
  • Each Load binder marked with important Warning instructions tag
  • Multilanguage user manuals included
  • Material: High strength all steel construction
  • Marking: According to standard, POWERTEX, Size, Grade , lashing capacity , STF, “Not for lifting”, traceability marking
  • Temperature range: -40ºC up to + 200°C.
  • Finish: Powder painted in Powertex red
  • Standard: EN 12195-3
  • Warning: Not approved for lifting.
  • Safety factor: 2:1
  • Grade: 8

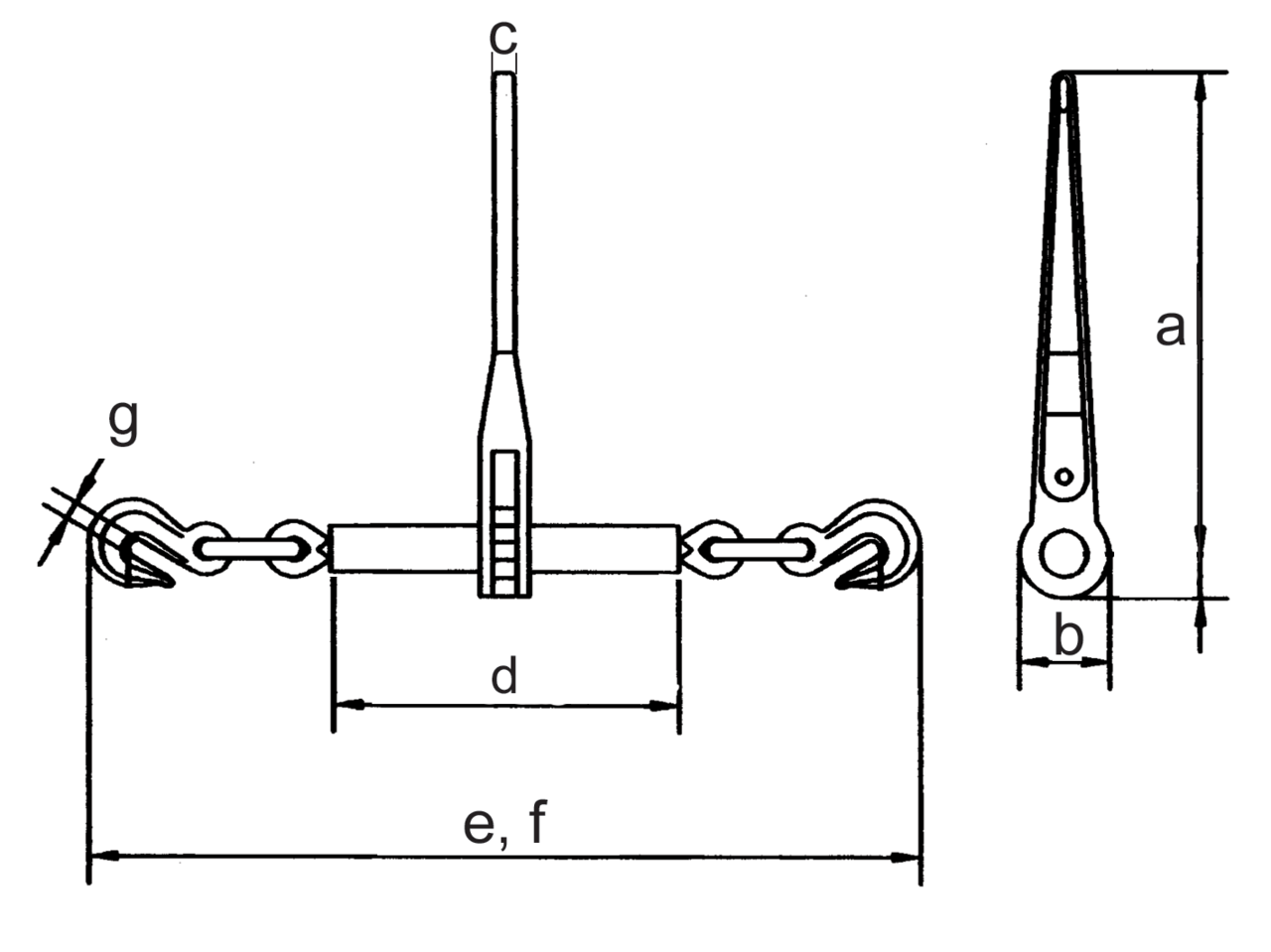

Powertex loadbinder drawing
Select a row from the table below, then click the add to quote button
Part Code LC
kN
MBL
t
STF
daN
Take up
mm
Chain size
mm
Proof load
ton
A
mm
B
mm
C
mm
D
mm
e
mm
f
mm
g
mm
Weight
kg
CAD
04.5010PLB08L 40 8 2,000 160 8 5 355 66 16 252 780 620 10,5 4.5
04.5010PLB10L 63 12.6 2,000 162 10 7,9 355 66 16 252 825 663 12 5.4
04.5010PLB13L 100 21.2 2,500 150 13 12,5 355 66 16 252 925 775 15 7.7
04.5010PLB16L 160 32.2 2,500 151 16 20 355 66 16 252 984 833 19 10.2
