Red Rooster

General:
Highspeed air chain hoist for loads from 500 up to 980 kg.
RED ROOSTER Air Chain Hoists are especially developped for the "Material Handling Industry". For example: warehousing, packaging etc.
These hoists have a very high lifting and lowering speed, making them very suitable for applications with long lifting heights.

  • Very high lifting and lowering speeds
  • Maximum speed adjustable, lifting and lowering speed independent from each other.
  • Precise variable speed control (cord - and pendant control).
  • Optimum control of the load, very precise positioning.
  • Compact and light weight.
  • Exhaust hose easy to assemble
  • Endstop system
  • Air motor is cooled by the exhaust air (internal)
  • Cord control or pendant control
  • Low noise level
  • Aluminum housing

Optional:

  • Marine Specification/Corrosion resistant
  • Paint systems from C2 - Industrial to C5 - Offshore specification (Red finish as standard. Other RAL colours available on request).
  • Choice of pendants.
  • Radio control pendant for electro pneumatic controls.
  • Control systems.
  • Chain collectors (PVC, galvanised or stainless steel).
  • Various types of hook or clevis available.
  • Air supply systems and valves.
  • Air Service unit.
  • Piped away exhaust air.
  • In house design for "specials".
  • Festoon systems.
  • Main air shut off valve.

ATEX:

  • According to EC Directive 94/9/EC (Ex Classification)

Recommended:
We highly recommend the use of an SMC air treatment unit. (Sold separately.)

Velg et produkt fra tabellen nedenfor og klikk på knappen "Legg til forespørsel"
Art. Nr. WLL
ton
Type Kjettingfall Løftehastighet ved max-last Senkehastighet ved max-last Lufttilkobling Arbeidstrykk bar Vekt ved 3 m HOL (kg) Løftehastighet uten last Minimum slagedimensjon Luftforbruk ved løft Luftforbruk ved senking CAD
16.30TCS-500C 0,5 TCS-500C 1 (6.3x19.1mm) 17 34 1/2"BSPT 6 19 33 1/2" 28 33
16.30TCS-500PE 0,5 TCS-500PE 1 (6.3x19.1mm) 17 34 1/2"BSPT 6 19 33 1/2" 28 33
16.30TCS-980C2 0,98 TCS-980C2 2 (6.3x19.1mm) 8,5 17 1/2"BSPT 6 24 17 1/2" 28 33
16.30TCS-980P2E 0,98 TCS-980P2E 2 (6.3x19.1mm) 8,5 17 1/2"BSPT 6 24 17 1/2" 28 33

Download CAD

Description

Get CAD
Nedlasting

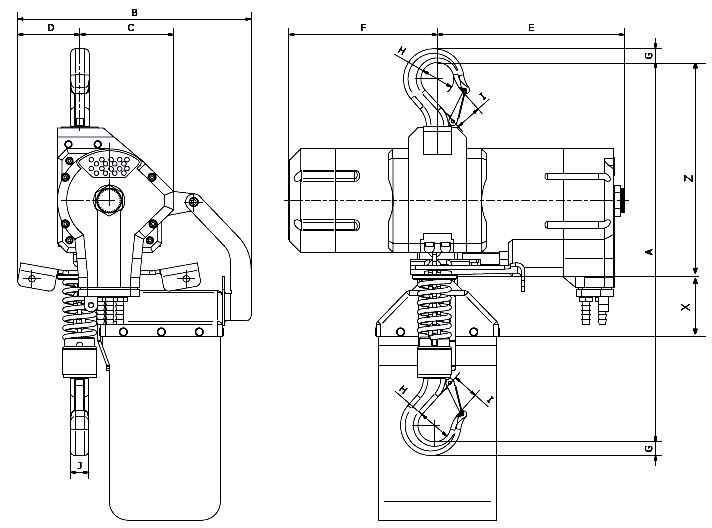

Type
A
B
C
D
E
F
G
I
J
X
Z

mm











TCS-500C / TCS-500PE
415
255
13
68
205
163
15
35
22
22
40
210
TCS-980C2 / TCS980P2E
510
205
123
37
163
205
30
40
29
25
40
225
