General:
The use of the G-414 extra heavy thimbles for your wirerope slings ensures a greater protection against wear of the wire rope and deformation of the wire rope eye.

Features:

  • Longer service life.
  • Material: Steel
  • Marking: According to standard
  • Finish: Hot-dip galvanised
  • Standard: EN 13411-1
Crosby G-414 Thimble
Crosby G-414
Select a row from the table below, then click the add to quote button

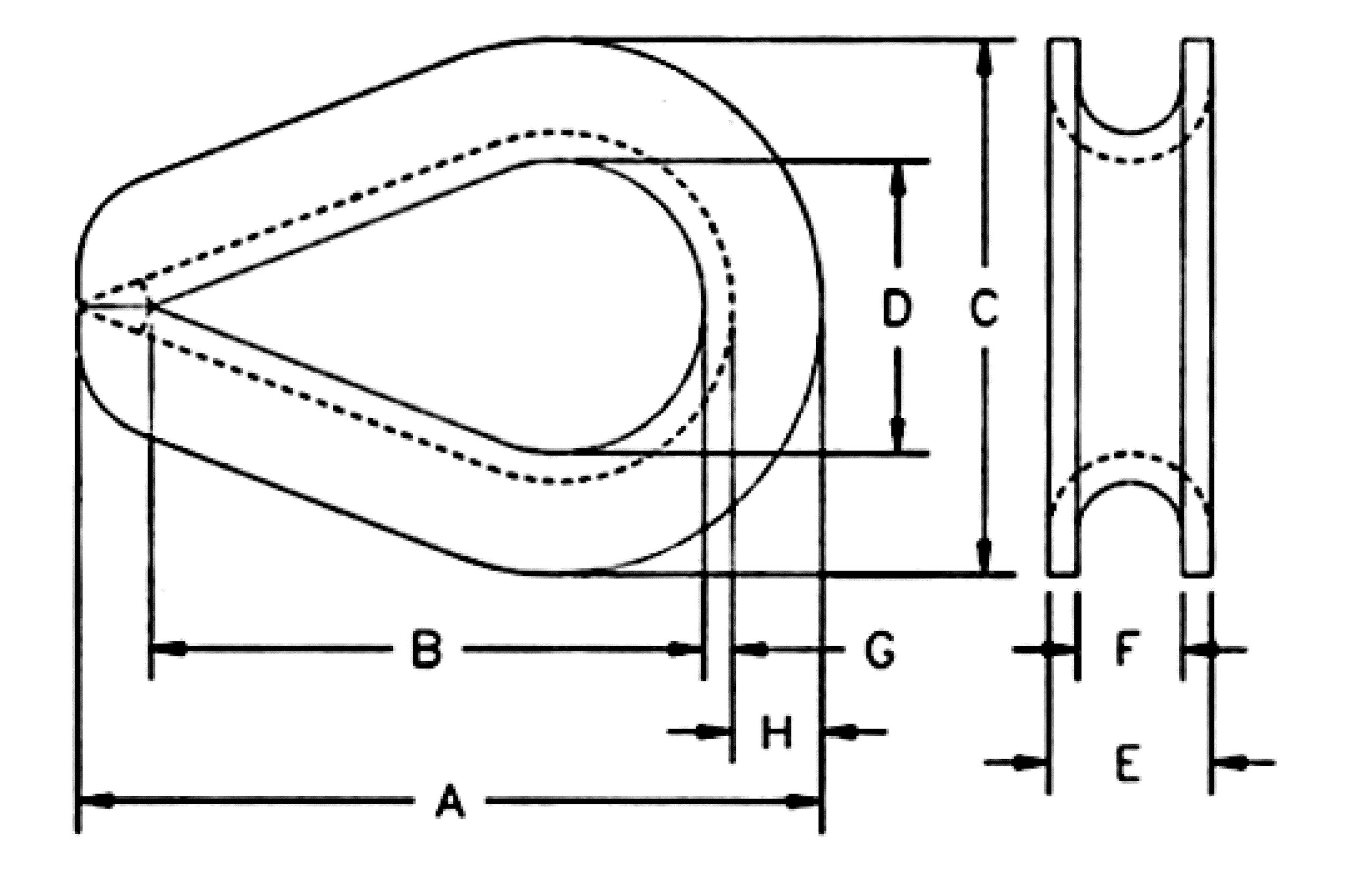

Part Code Wire Ø
mm
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
H
mm
Weight
kg/100pc
CAD
10.251037639 6-7 55.5 41.4 38.1 22.4 11,2 7.1 1.5 5.85 3
10.251037657 8 63.5 47.8 46 26.9 14,0 8.65 2.05 7.1 5.35
10.251037675 9-10 73,0 54,0 54 28.7 16,8 10.4 2.8 8.65 9.8
10.251037693 11-12 82.5 60.5 60.5 31.8 18.8 11.9 3.3 9.65 15.7
10.251037719 13-15 92,0 70,0 70,0 38.1 23.4 13,5 3.55 10.4 23.1
10.251037755 16 108 82.5 79.5 44.5 26,2 16.8 4.05 12.7 34.3
10.251037773 18-20 127 95.5 96,5 51 33,0 19.8 5.6 16.8 72
10.251037791 22 140 108 108 57 37,3 23.9 5.6 19.1 81
10.251037817 24-26 156 114 125 63.5 44,5 26.9 6.35 22.4 142
10.251037835 28-32 178 130 149 73 47,8 33.3 6.35 28.7 181
10.251037853 32-35 230 165 173 89 57,2 36.6 9.65 28.7 402
10.251037871 35-38 229 159 181 89 66,5 39.6 12.7 28.7 587
10.251037899 40 286 203 207 102 76,2 43.7 12.7 35.1 771
10.251037915 44 310 229 216 114 77,7 46.7 12.7 33.3 805
10.251037933 48-52 384 305 264 152 85,9 53,0 12.7 38.1 1,259
10.251037951 56 435 356 302 178 98,6 60.5 16,0 41.4 1,792
