  • Material: High tensile steel, quenched and tempered.
  • Marking: According to standard
  • Temperature range: -40 °C to 200 °C
  • Finish: All load bearing parts hot dip galvanized
  • Standard: EN 13889
  • Safety factor: 6:1
Select a row from the table below, then click the add to quote button

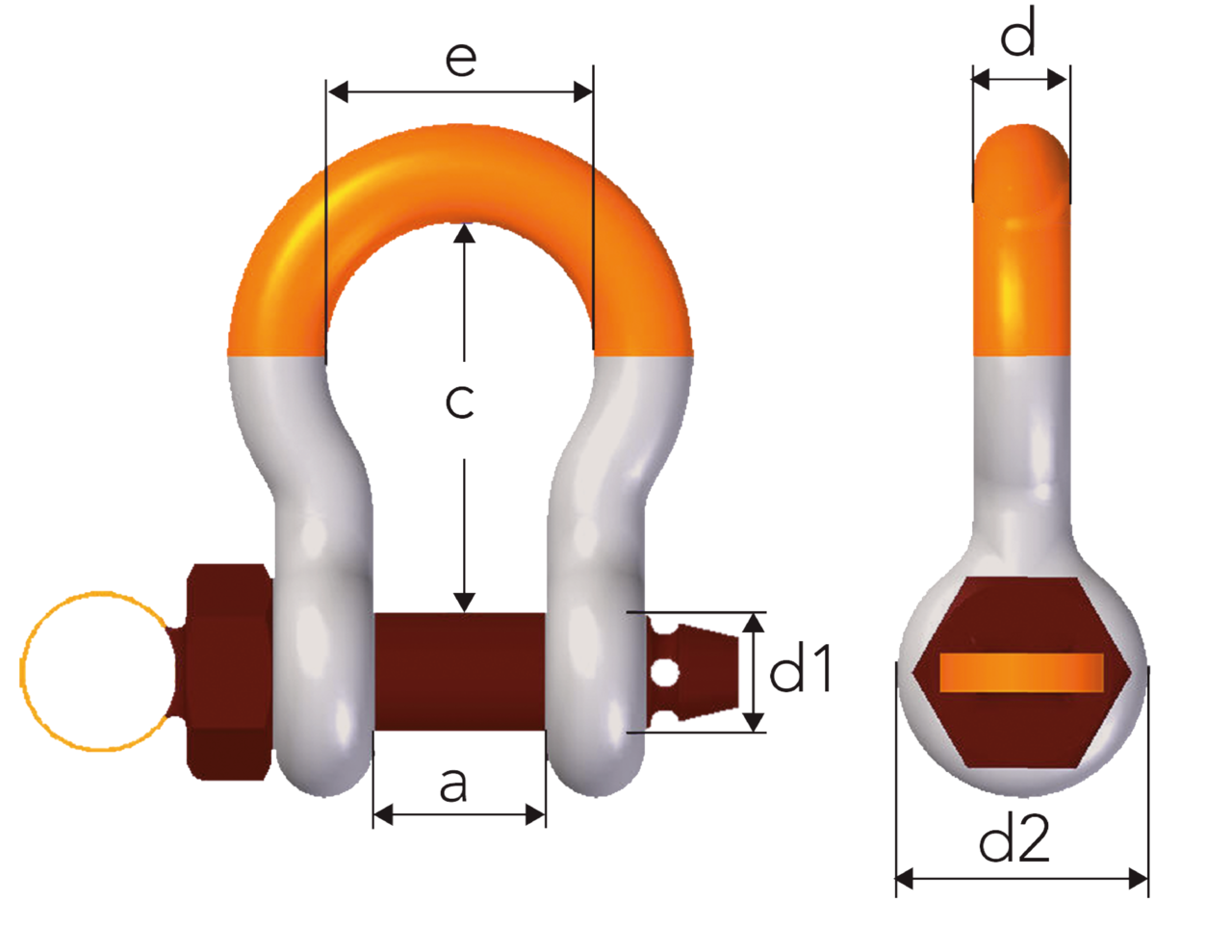

Part Code WLL
ton
a
mm
c
mm
d
mm
d1
mm
d2
mm
e
mm
Weight
kg
CAD
På forespørsel 9.5 46 108 28 32 64 74 4
På forespørsel 12 52 119 32 35 72 83 5
På forespørsel 17 60 146 38 42 84 98 7.8
På forespørsel 25 74 178 45 50 105 127 13.9
På forespørsel 35 83 197 50 57 127 138 20
På forespørsel 55 105 260 65 70 152 185 41

Download CAD
