Pressed of profile steel. The first choice for harsh environment of the marine sector.

  • Material: Stainless acidproof steel AISI 316.
  • Finish: Polished
Stainless steel thimble AISI 316

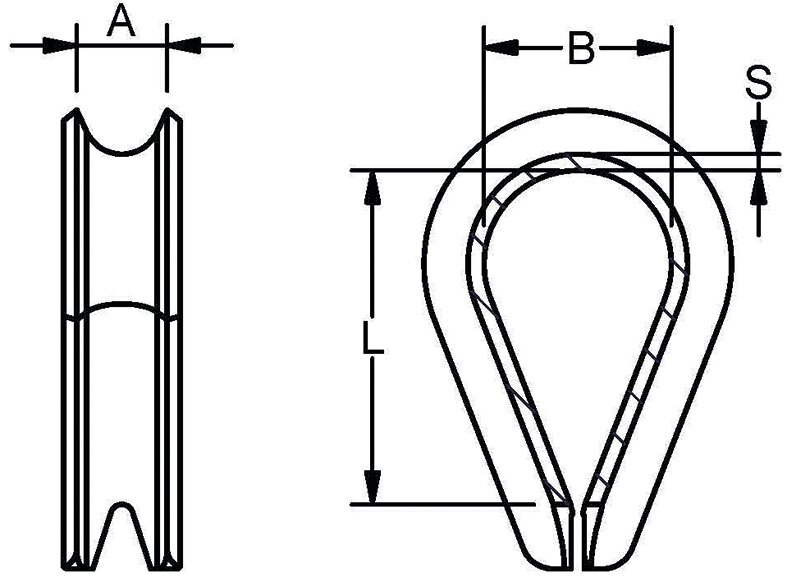

Stainless steel thimble, drawing
Select a row from the table below, then click the add to quote button
Part Code Rope diameter
mm
A
mm
B
mm
L
mm
S
mm
Weight
kg/100pc
10.26110003 3 4 10 17 1,0 0.3
10.26110004 4 5 11 19 1,35 0.5
10.26110005 5 6 13 21 1,2 0.7
10.26110006 6 7 15 27 1,5 1.1
10.26110007 7 8 19 33 1,5 1.4
10.26110008 8 9 22 38 2,0 2.6
10.26110010 10 11 27 46 2,7 4.9
10.26110012 12 14 29 52 2,7 6.6
10.26110014 14 16 33 57 3,0 9
10.26110016 16 18 40 67 3,0 11.3
10.26110018 18 20 45 75 4,0 19
10.26110020 20 22 52 84 4,0 31.2
10.26110022 22 24 56 93 5,0 45.5
