General: The sheaves are intended to cranes and elevators where the standard specifications for the crane ropes are applied and for other installations where lenient service are desired. Relation between diameters are app. 20 (wire rope Ø x 20 = ØE), which answers to the demands on machine group 2m.
Design: 6806-K to 6810-K are turned, the larger dimensions are cold formed or rolled from steel which result in stabil design and low weight. Even and smooth marks which spare the wire rope. Welded ball bearing nave which can easily be adapted to the customer wishes. The ball bearings have double rubber packings (design 2RS) and shall not be lubricated.
This model is also avaliable with tightening cover and radial sealing.

  • Material: High-tensile construction steel.
  • Finish: 6806-K to 6810-K are yellow zincified, larger dimensions are painted.

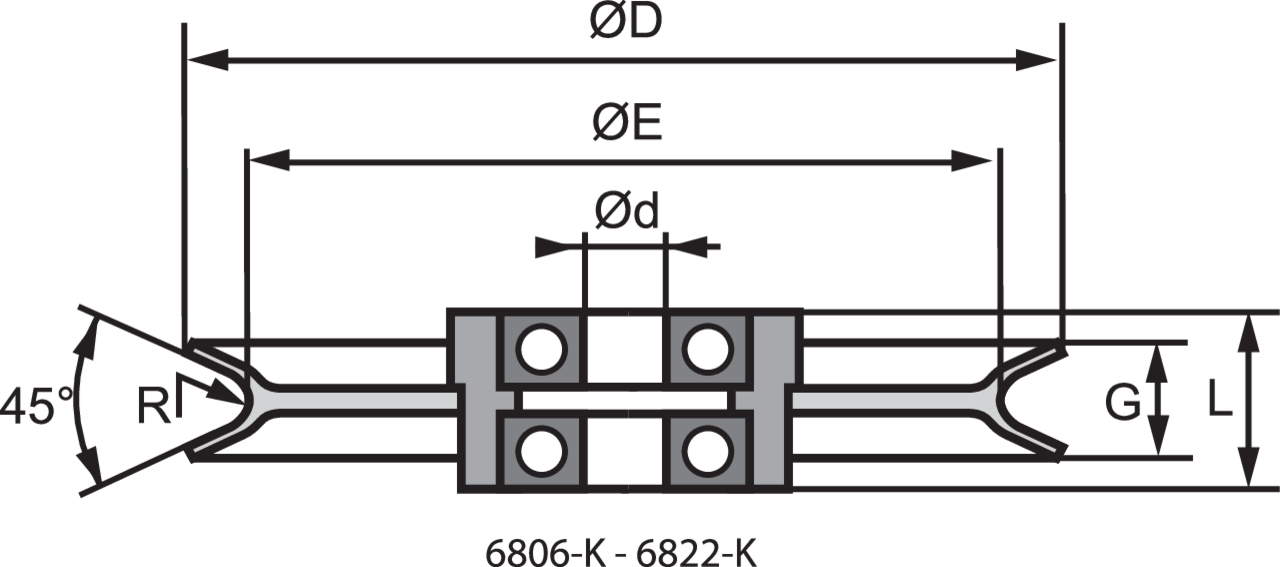

6800_new_225mm_2
6806m2_micke2_lom_225mm_2 6800-km_mirr_2[new2]_225mm_2 6800-km_mirr_2[new2]_alt_225mm_2
Select a row from the table below, then click the add to quote button
Part Code Code Rope Ø
mm
Bearing type D
mm
E
mm
G
mm
L
mm
R
mm
d
mm
Weight
kg
CAD
På forespørsel 6806-K 5-6 6302-2RS1 155 125 24 30 3,2 15 1.6
På forespørsel 6808-K 7-8 6304-2RS1 190 160 26 40 4,3 20 2.6
På forespørsel 6810-K 9-10 6306-2RS1 235 200 30 45 5,3 30 4.5
På forespørsel 6812-K 11-12 6307-2RS1 290 250 32 50 6,4 35 6.4
På forespørsel 6814-K 13-14 6309-2RS1 325 280 40 60 7,5 45 11
På forespørsel 6816-K 15-16 6310-2RS1 370 315 43 70 8,6 50 14
På forespørsel 6818-K 17-18 6312-2RS1 415 355 48 75 9,7 60 18
På forespørsel 6820-K 19-20 6313-2RS1 470 400 58 90 10,8 65 26
På forespørsel 6822-K 21-22 6315-2RS1 525 450 65 100 12 75 34
På forespørsel 6825-K 24-25 SL04 5018 PP 580 500 65 67 14 90
På forespørsel 6828-K 26-28 SL04 5020 PP 660 575 70 67 15 100
På forespørsel 6832-K 30-32 SL04 5022 PP 720 630 82 82 17 110
På forespørsel 6836-K 34-36 SL04 5024 PP 810 710 90 80 19 120
På forespørsel 6840-K 38-40 SL04 5028 PP 910 800 90 95 22,5 140
Other dimensions and designs on request.
