Gunnebo Industries











  • Material: High tensile steel, quenched and tempered
  • Marking: According to standard
  • Temperature range: Sizes 12 - 25 tonnes: -40 °C to 200 °C. 35 - 55 tonnes: -20 °C to 200 °C
  • Finish: All load bearing parts hot dip galvanized
  • Standard: EN 13889
  • Safety factor: 6:1
Select a row from the table below, then click the add to quote button

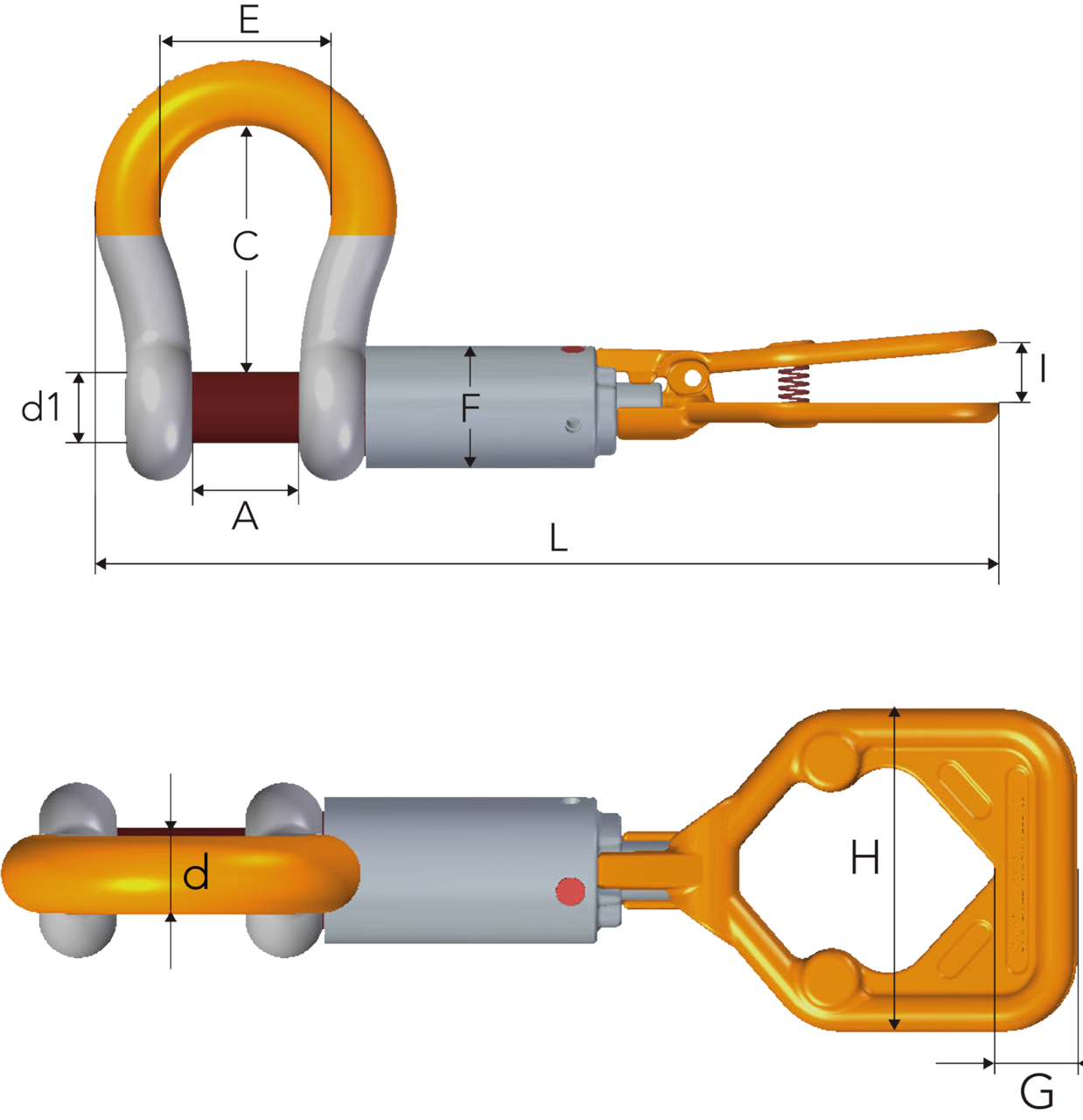

Part Code WLL
ton
D1
mm
D
mm
A
mm
C
mm
E
mm
F
mm
L
mm
I
mm
H
mm
G
mm
Weight
kg
CAD
12 Ton 12 35 32 52 119 83 60 460 31 132 33 8
17 Ton 17 42 38 60 146 98 63.5 501 31 132 33 10.5
25 Ton 25 50 45 74 178 127 70 565 31 132 33 16.5
35 Ton 35 57 50 83 197 138 76 604 31 132 33 20.5
55 Ton 55 70 65 105 255 185 88 712 31 132 33 42

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
