Gunnebo Industries



  • Material: High tensile steel, quenched and tempered
  • Marking: According to standard
  • Temperature range: -20°C to 200°C
  • Finish: All load bearing parts hot dip galvanized
  • Standard: EN 13889
  • Safety factor: 5:1
Select a row from the table below, then click the add to quote button

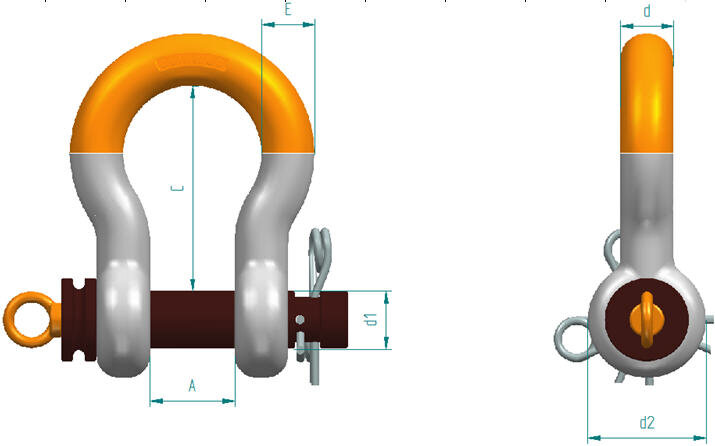

Part Code WLL
ton
D1
mm
D
mm
A
mm
C
mm
D2
mm
e
mm
Weight
kg
CAD
11.30A086322 6.5 25 22 37 84 52 58 1.6
11.30A086332 9.5 32 28 46 108 64 74 3.4
11.30A086325 12 35 32 52 119 72 83 5
11.30A086338 17 42 38 60 146 84 98 7.8
11.30A086345 25 50 45 74 178 105 127 13.9
11.30A086352 35 57 50 83 197 127 138 17
11.30A086364 55 70 65 105 255 152 185 37

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
