For use: Between and under containers.

  • Material: Forged/ductile iron.
  • Finish: Galvanized.
4072_225mm
Select a row from the table below, then click the add to quote button
Part Code Code Type Breaking load
ton
Weight
kg
CAD

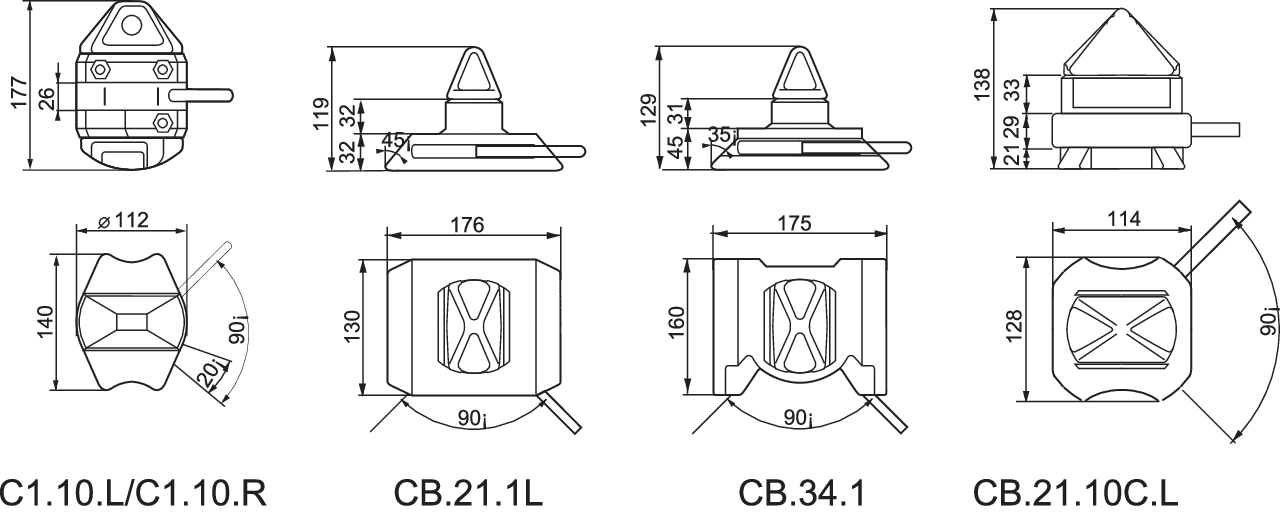

14.60CB-21-10C(L) CB.21.10C.L Left for Breech base FE.40.1 40 5
14.60CB-21-1L CB.21.1.L Left for U-frame FE.03 40 5
14.60CB-34-1L CB.34.1 CONVER for U-frame FE.28.1 40 6
14.60CI-5-1D C1.10.R Standard right 40 6.5
14.60CI-5-1L C1.10.L Standard left 40 6.5
C1.45.1 Automatic twistlock 50 6.5

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
