A combination of wire rope clamp and thimble, approved for application in elevators and hoists. Two part thimble and recessed bolts, for easy mounting.
Design: Annealed casting. Bolts and nuts in grade 8.8.




  • Finish: Galvanized
3503_e_225mm
3503m_e_225mm
Select a row from the table below, then click the add to quote button

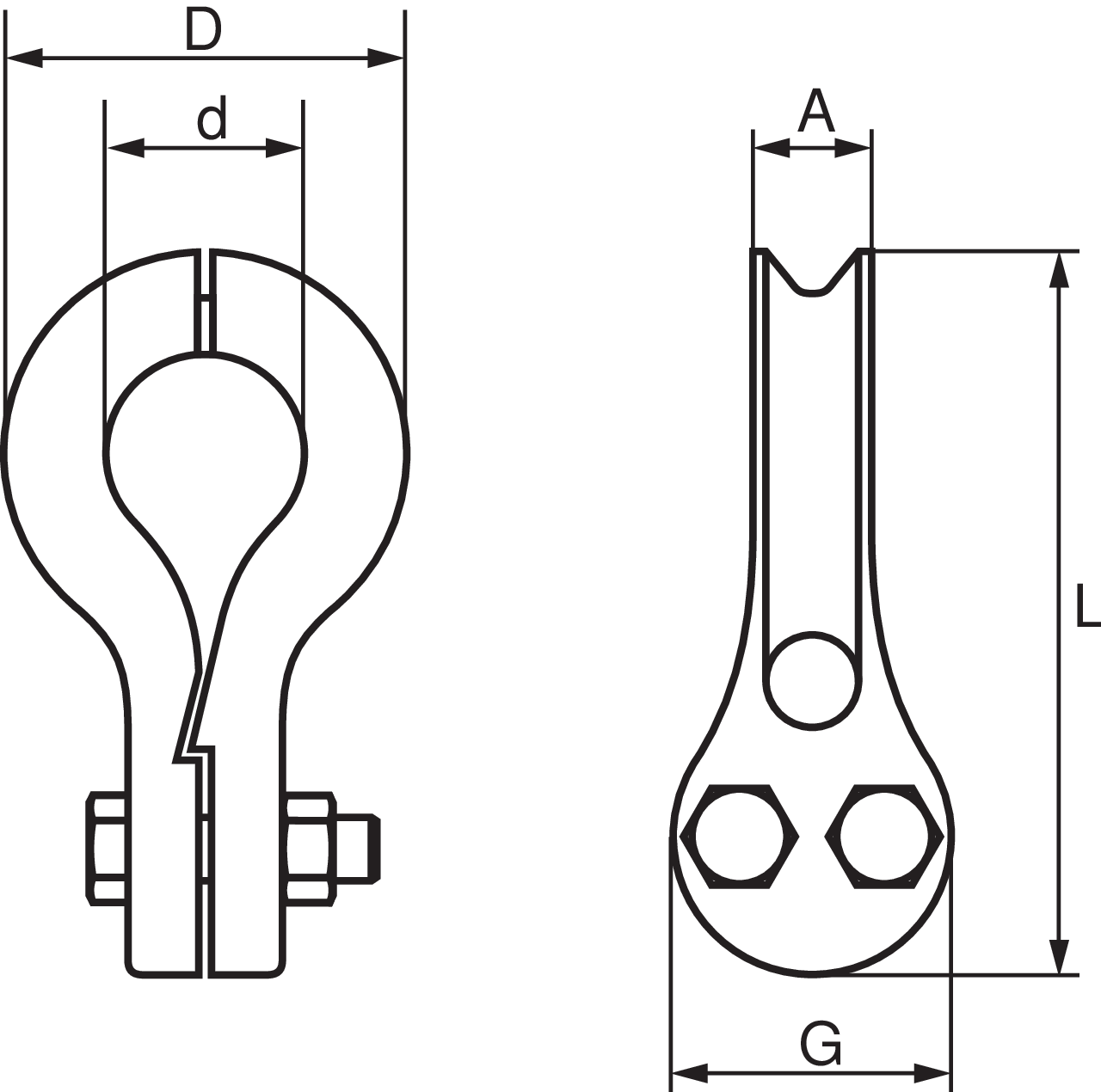

Part Code Rope Ø
mm
A
mm
D
mm
G
mm
L
mm
Weight
kg
CAD
På forespørsel 5-6 12 22 28 75 0.2
På forespørsel 7-9,5 18 30 40 110 0.4
På forespørsel 10-12,5 24 40 52 155 1
07.293508 13-16,5 29 50 65 200 2
På forespørsel 17-20 37 64 80 244 3.8
07.293511 21-25 45 85 100 306 6.7

Download CAD
