Crosby

Design: Bolt type anchor shackle. Headbolt with nut and pin. Forged according to U.S. specification RR-C-271.
Proof load: 2 x WLL.

  • Material: Carbon steel with headbolt in alloy steel.
  • Marking: According to standard, WLL.
  • Finish: Hot dip galvanized.
  • Standard: EN 13889
  • Safety factor: 8
  • Grade: 8
DNV 2.7-1 approved
Crosby_G2130A_pic
2934_lom2_225mm
Select a row from the table below, then click the add to quote button

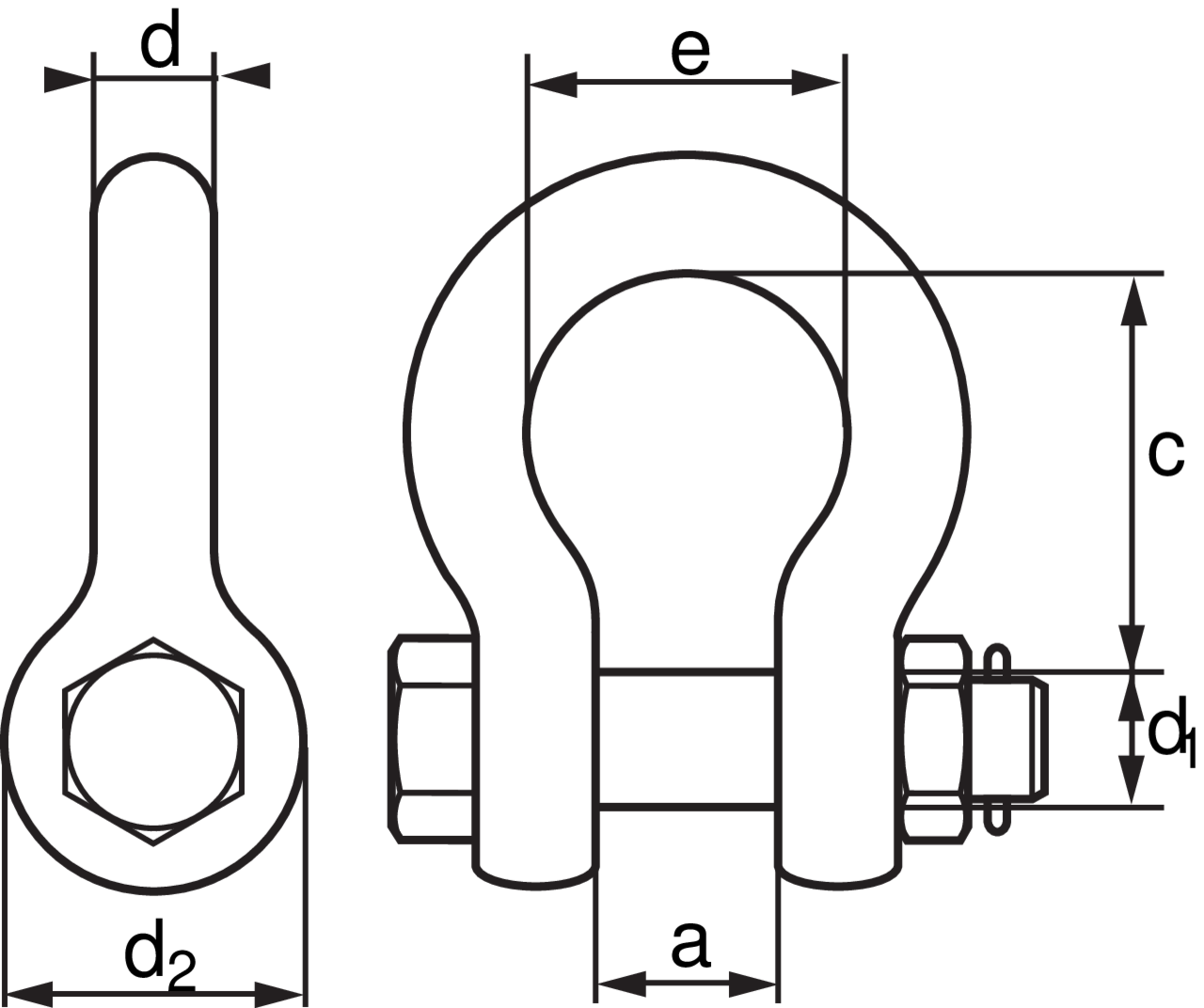

Part Code WLL
ton
A
mm
D1 (mm) C (mm) D
mm
e (mm) D2 (mm) Weight
kg
CAD
11.3112194724 2 20,6 16,0 47,8 12,7 33,3 30,2 0.36
11.3112194914 3.25 26,9 19,1 60,5 16,0 42,9 38,1 0.62
11.3112195164 4.75 31,8 22,4 71,5 19,1 51,0 46,0 1.23
11.3112195344 6.5 36,6 25,4 84,0 22,4 58,0 53,0 1.79
11.3112195524 8.5 42,9 28,7 95,5 25,4 68,5 60,5 2.28
11.3112195784 9.5 46,0 31,8 108 28,7 74,0 68,5 3.75
11.3112195984 12 51,5 35,1 119 31,8 82,5 76,0 5.31
11.3112196144 13.5 57,0 38,1 133 35,1 92,0 84,0 7.18
11.3112196324 17 60,5 41,4 146 38,1 98,5 92,0 8.62
