• Finish: Galvanized.
9811_225mm
9811m_micke2_225mm

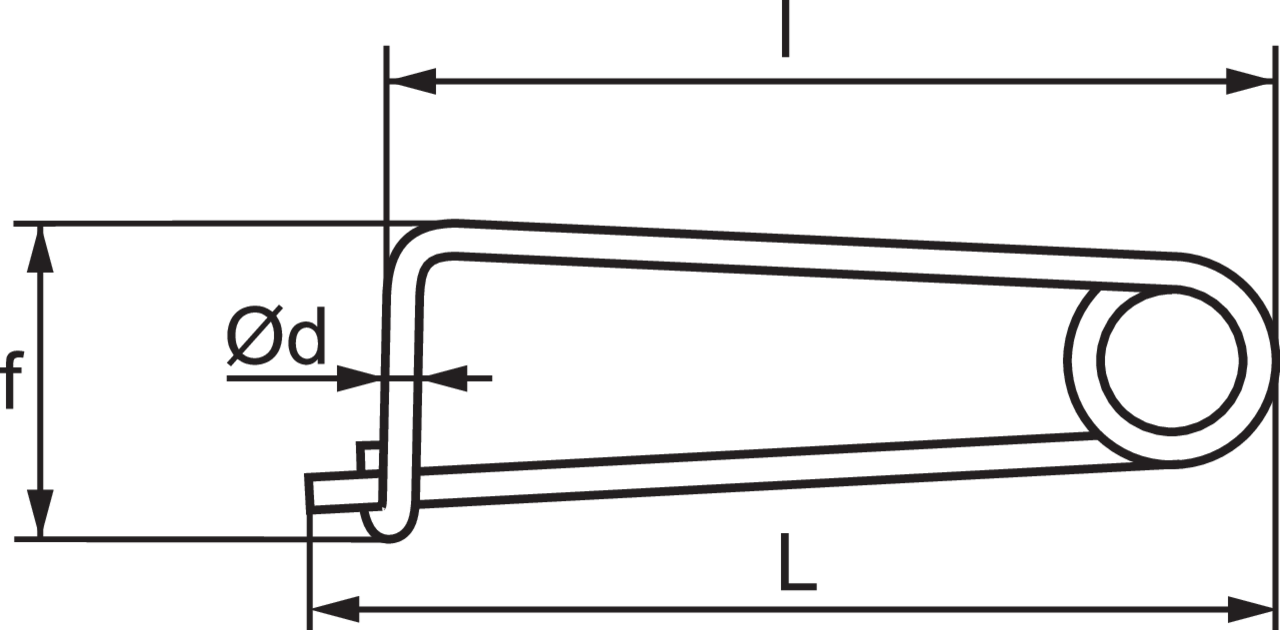

Select a row from the table below, then click the add to quote button
Part Code a
mm
b
mm
c
mm
d
mm
f
mm
i
mm
Weight
kg
CAD
09.079814 70 66 16 2 24 8 0.8
09.079815 100 102 20 3 31 10 1.9
10.13520104 140 133 21 4 39 14 3.9
10.13520105 180 180 36 5 53 18 8.3
10.13520106 190 180 38 6 58 20 13.1
