• Finish: Galvanized.
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Diameter
mm
WLL
ton*

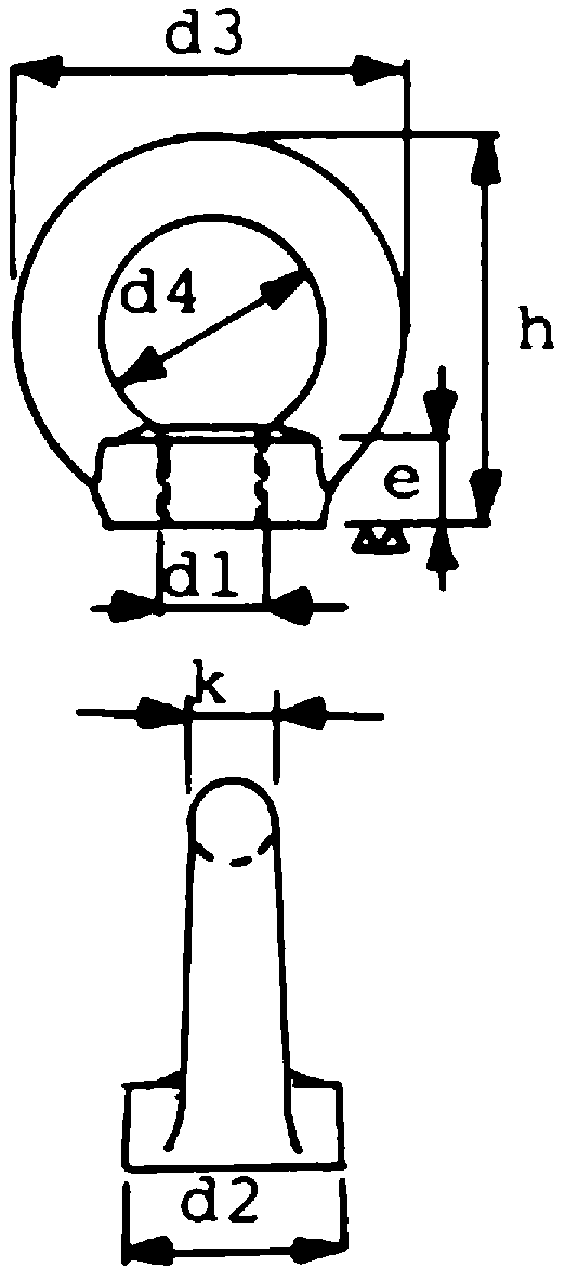

d1
mm
d2
mm
d3
mm
d4
mm
e
mm
h
mm
k
mm
Weight
kg
CAD
07.119408M 0.14 M8 0,09 8 20 36 20 8,5 36 8 0.05
07.119410M 0.23 M10 0,17 10 25 45 25 10 45 10 0.09
07.119412M 0.34 M12 0,24 12 30 54 30 11 53 12 0.16
07.119416M 0.7 M16 0,50 16 35 63 35 13 62 14 0.24
07.119420M 1.2 M20 0,83 20 40 72 40 16 71 16 0.36
07.119424M 1.8 M24 1,27 24 50 90 50 20 90 20 0.72
På forespørsel 3.6 M30 2,60 30 65 108 60 25 109 24 1.32
På forespørsel 5.1 M36 3,70 36 75 126 70 30 128 28 2.08
*WLL with 0% working angle
**WLL with use of 2 eyebolts 45% working angle

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
