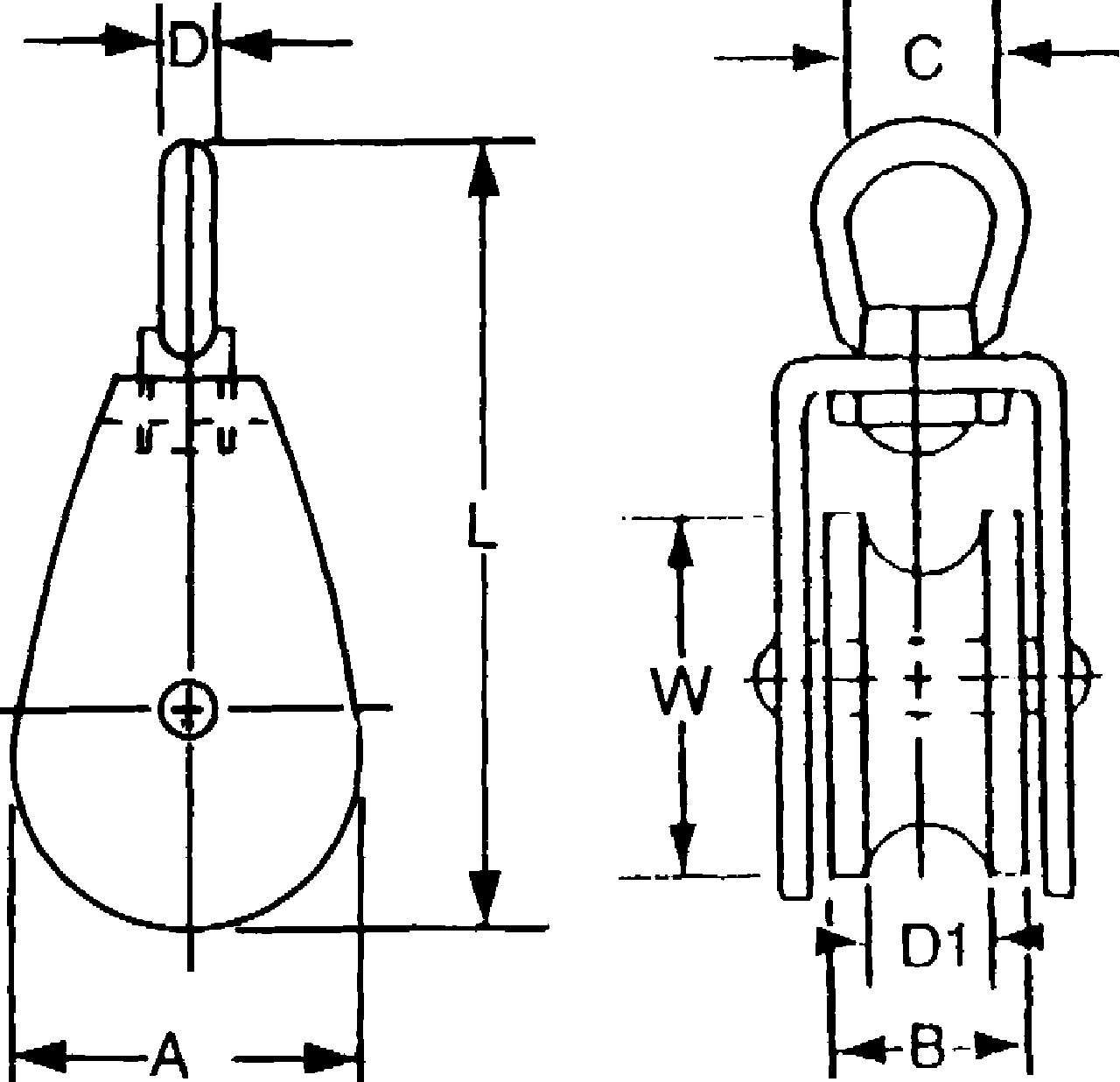

General: Sheave block, single with swivel.

  • Material: AISI 316.
Select a row from the table below, then click the add to quote button
Part Code Diameter
Width CAD
99.NO6011423000 25 10
99.NO6011423200 32 10
99.NO6011423400 50 13

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
