Unbalanced
General:
For small to medium loads and thin coils. Often used after the splitting of wider coils. For further information, see the introductory text above in the section on C-hooks.
Design: Cut steel plate. The fork covers the entire coil width, and has a nose on the tip for additional safety. When unloaded, the hook hangs with the tip of the fork pointing upwards, which facilitates loading of the coil.


Proof: 1,5 x WLL.

  • Material: Plate of high-strength structural steel.
  • Marking: Type, working load limit, maximum coil width and CE marking.
  • Finish: Yellow painted.
  • Safety factor: 1,5 x WLL.
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
A (coil width) E
mm
G
mm
H
mm
L
mm
S
mm
T
mm
U (mm) Weight
kg
CAD

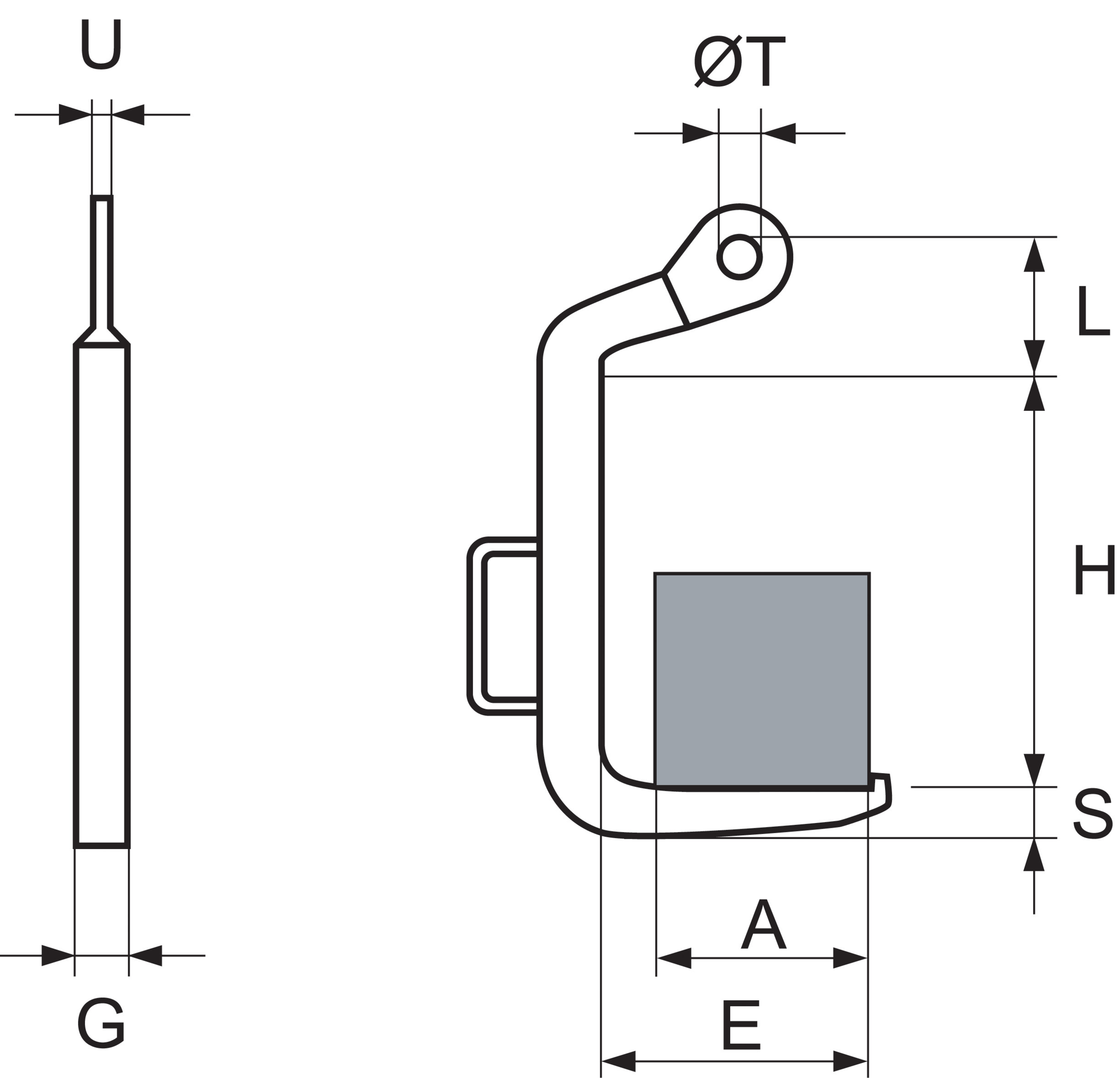

CKP2,5-6 0.25 60 75 12 400 70 25 30 12 2
CKP5-12 0.5 120 145 20 340 130 40 60 20 4.1
CKP10-20,5 1 205 230 20 390 141 60 60 20 8.6
CKP20-26,5 2 265 315 50 500 180 60 60 25 26
CKP30-28 3 280 330 50 500 230 80 80 25 36
CKP40-45 4 450 500 50 600 205 105 90 25 61
Other dimensions and design are made by request.
