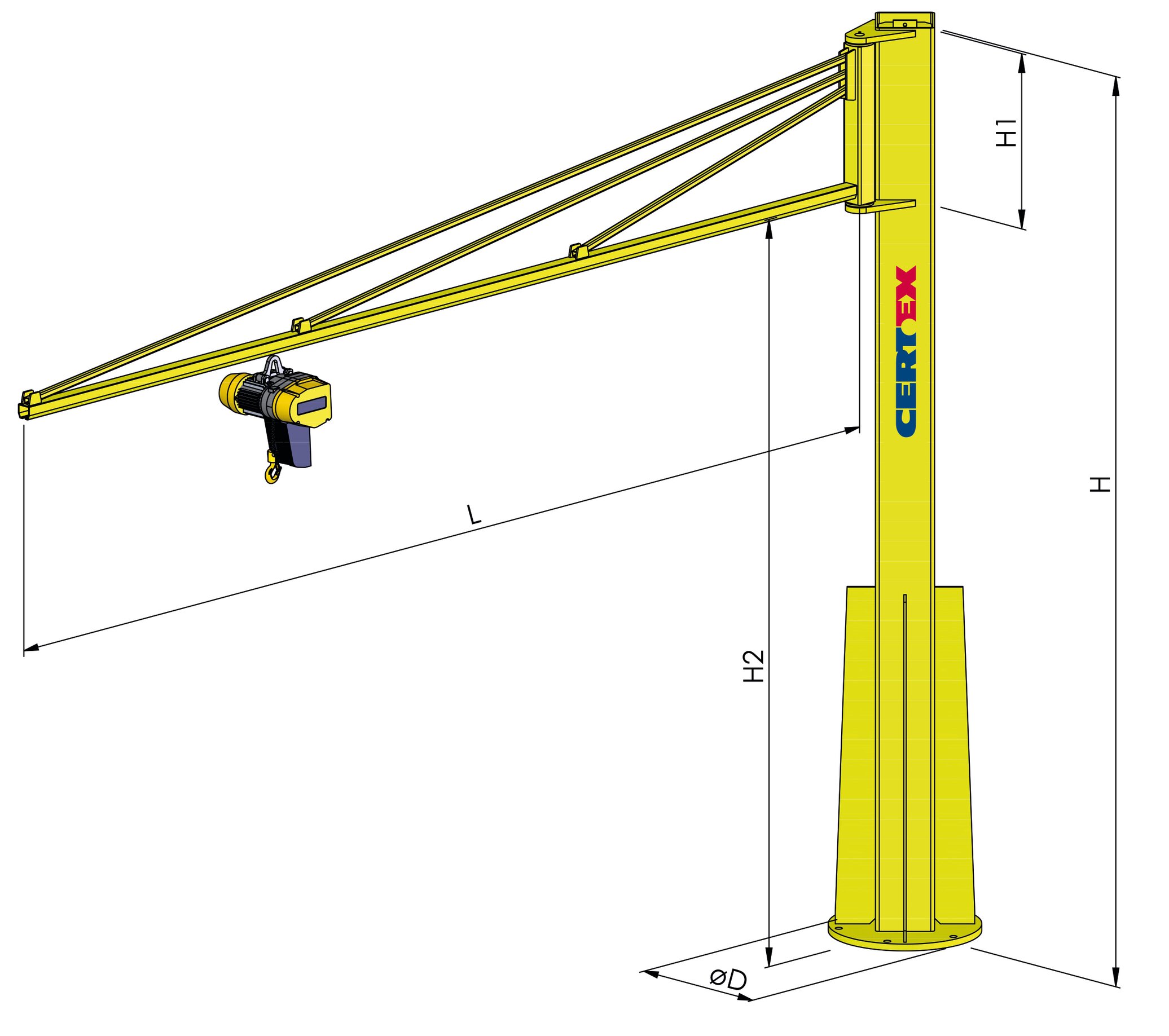

General: This type of pillar crane is for lifting and handling of lightweight loads. Our standard programme is designed in load groups from 125 kg up to 500 kg. All these jib cranes are designed with a jib arm in a special C-profile characterized by a very low net weight as well as a very smooth running trolley. The cranes can be used with electrical chain hoists as well as vacuum lifters, balancing blocks etc.
Design: Lightweight welded beam construction providing good torsional stiffness.
Proof load: Usually 1,5 x WLL.
- Material: Beam and plate of high-strength structural steel.
- Marking: Working load limit (WLL), CE marking, manufacturer, serial number, year of manufacturing, etc.
- Finish: Yellow painted. Other treatments available on request.
Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
