General: For handling standard pallets from the short side.

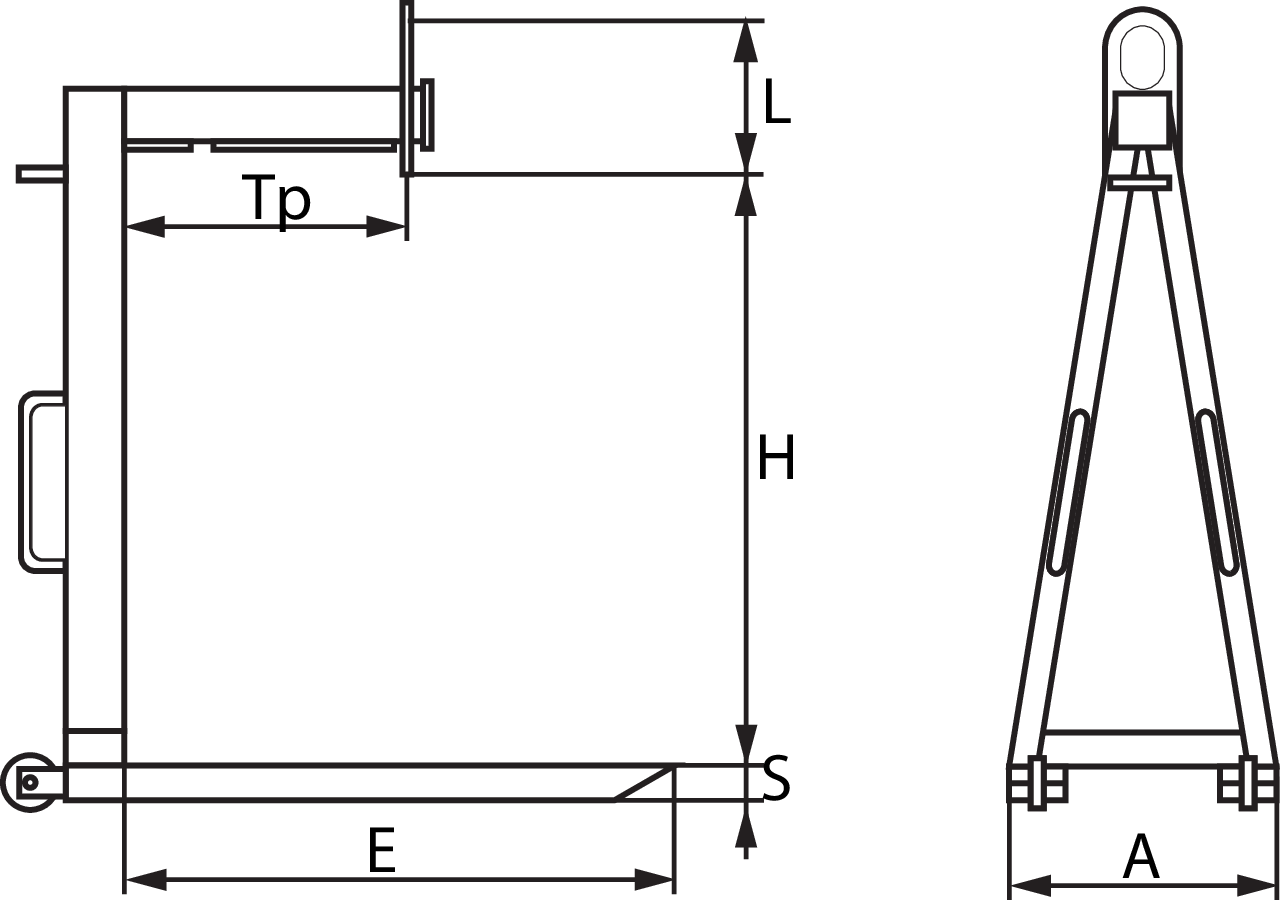

Design: Horizontal boom. The lifting eye must be moved to its respective position for lifting empty or loaded.
Proof: Batch proof 2 x max load.
- Material: Hollow-beam and plate of high-strength structural steel.
- Marking: Maximum load and CE-marking.
- Finish: Yellow painted.
- Note: Other sizes and designs are available upon request. This item is easily adjustable for customer’s requirements and particuarly suitable where there is restricted head room.
