Jaw / Jaw Crosby HG-228, galvanized - For Pulling

Home / Products / Chains and Components / OTHER CHAIN COMPONENTS / Rigging Screws / Jaw / Jaw Crosby HG-228

General:
End fittings are quenched and tempered, bodies heat treated by normalizing.
Forged jaw ends are fitted with bolts and nuts for 6 mm through 16 mm, and pins and cotters on 19 mm through 70 mm sizes.
Modified UNJ thread on end fittings for improved fatigue properties.
Body has UNC threads.

Standard: According to Federal Specifications FF-T-791b.

Marking: Logo, size and type.
Finish: Hot dipped galvanized.
Note: Turnbuckles recommended for straight or in-line pull only.

Safety factor: 5:1

Select a row from the table below, then click the add to quote button

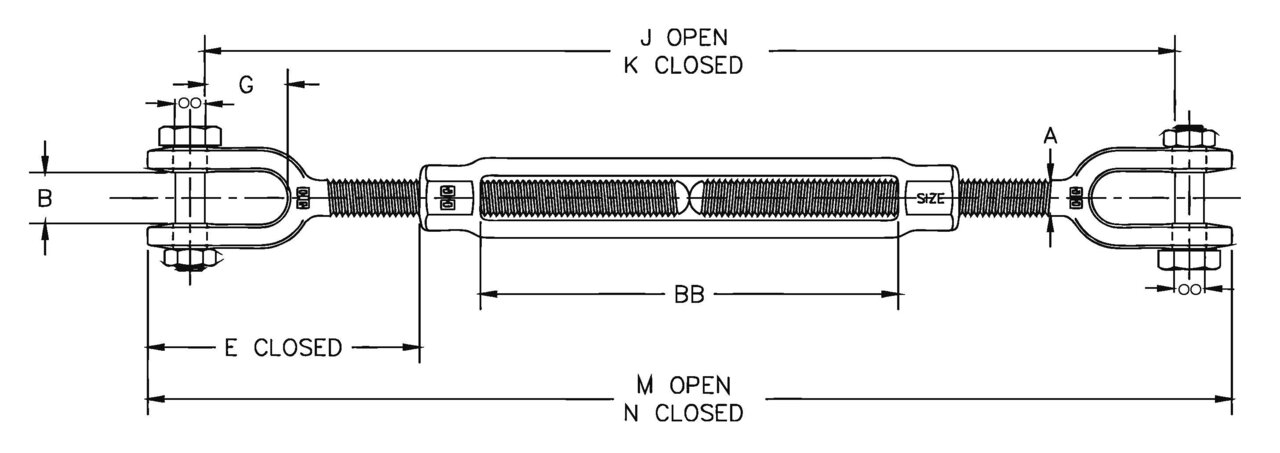

Part Code	WLL ton	Thread dia. & take up mm	Thread dia. & take up inch	A mm	B mm	E closed	G mm	J open	K closed	M open	N closed	BB mm	Weight kg
07.141032536	0.54	9,53 x 152	3/8 x 6	9,53	13,5	53,5	21,5	413	260	445	292	155	0.39
07.141032554	1	12,7 x 152	1/2 x 6	12,7	16,3	81,8	27,1	474	321	512	359	153	0.83
07.141032572	1	12,7 x 229	1/2 x 9	12,7	16,3	81,3	27,1	633	405	671	443	238	1.04
07.141032616	1.59	15,9 x 152	5/8 x 6	15,9	20,1	99,1	33,5	501	349	554	402	153	1.46
07.141032652	1.59	15,9 x 305	5/8 x 12	15,9	20,1	98,8	33,5	815	510	868	563	315	2.08
07.141032670	2.36	19,1 x 152	3/4 x 6	19,1	24,6	120	38,5	536	383	601	449	156	2.18
07.141032698	2.36	19,1 x 229	3/4 x 9	19,1	24,6	119	38,5	698	470	764	535	244	2.65
07.141032714	2.36	19,1 x 305	3/4 x 12	19,1	24,6	119	38,5	851	546	916	612	320	3.05
07.141032732	2.36	19,1 x 457	3/4 x 18	19,1	24,6	120	38,5	1,155	698	1,221	764	471	3.83
07.141032750	3.27	22,2 x 305	7/8 x 12	22,2	29,5	140	44,8	880	575	956	651	309	4.25
07.141032778	3.27	22,2 x 457	7/8 x 18	22,2	29,5	140	44,8	1,197	740	1,272	815	473	5.34
07.141032806	4.54	25,4 x 152	1 x 6	25,4	34,0	155	42,1	605	453	690	538	157	4.74
07.141032812	4.54	25,4 x 305	1 x 12	25,4	34,0	155	52,1	910	605	995	690	309	6.25
07.141032830	4.54	25,4 x 457	1 x 18	25,4	34,0	155	52,1	1,215	757	1,300	843	462	7.77
07.141032824	4.54	25,4 x 610	1 x 24	25,4	34,0	154	52,1	1,535	925	1,620	1,010	631	9.51
07.141032876	6.89	31,8 x 305	1-1/4 x 12	31,8	46,7	205	71,5	1,000	695	1,107	802	306	9.94
07.141032894	6.89	31,8 x 457	1-1/4 x 18	31,8	46,7	205	71,5	1,305	848	1,412	955	459	11.7
07.141032910	6.89	31,8 x 610	1-1/4 x 24	31,8	46,7	205	71,5	1,624	1,014	1,731	1,121	625	13.5
07.141032938	9.71	38,1 x 305	1-1/2 x 12	38,1	52,3	227	71,4	1,035	731	1,160	855	313	14.8
07.141032956	9.71	38,1 x 457	1-1/2 x 18	38,1	52,3	227	71,4	1,340	883	1,465	1,008	465	17.2
07.141032974	9.71	38,1 x 610	1-1/2 x 24	38,1	52,3	227	71,4	1,661	1,051	1,786	1,176	633	19.7
07.141033018	12.7	44,5 x 457	1-3/4 x 18	44,5	66,0	238	85,0	1,355	898	1,503	1,045	467	24.3
07.141033036	12.7	44,5 x 610	1-3/4 x 24	44,5	66,0	238	85,0	1,660	1,050	1,807	1,198	619	27.7
07.141033054	16.8	51,0 x 610	2 x 24	50,8	66,5	300	95,0	1,769	1,159	1,949	1,339	622	43.7
07.141033072	27.2	63,5 x 610	2-1/2 x 24	63,5	77,7	337	113	1,853	1,244	2,087	1,478	625	75.9
07.141033090	34	70,0 x 610	2-3/4 x 24	69,9	93,7	379	106	1,899	1,289	2,172	1,562	626	90.1

*Proof Load is 2.5 times the Working Load Limit. Ultimate Load is 5 times the Working Load Limit.
