Arctic Offshore Master link M, painted master link

Home / Products / Chains and Components / OFFSHORE / Master Links and Assemblies / Arctic Offshore Master link M

Approvals: DNV 2.7-1 and DNV 2-7-3

Material: Quenched and tempered alloy steel grade 8+ OS.
Marking: Code and grade.
Finish: Painted.

Safety factor: 5:1
Grade: 10

Select a row from the table below, then click the add to quote button

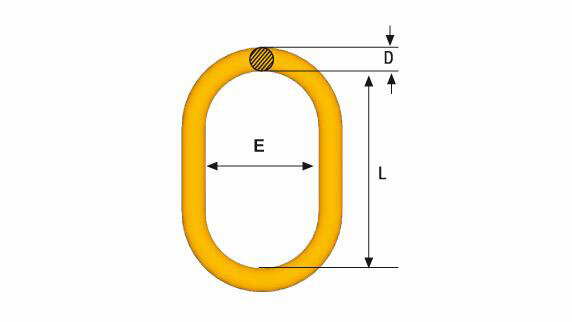

Part Code	Code	Working Load Limits DNV 2.7-1 tonnes	Working Load Limits DNV 2.7-1 Max container rating kgs	Working Load Limits EN-1677-4 SF 5:1 tonnes	L mm	E mm	D mm	Weight kg
11.01Z101486	M-9T-OS	9,0	5,000	9,0	270	140	25	3
11.01Z101487	M-12T-OS	12,5	7 500	12,5	270	140	28	3.8
11.01Z101488	M-18T-0S	18,5	13,500	18,5	270	140	32	5.1
11.01Z101489	M-24T-0S	24,0	21,000	24,0	270	140	36	6.5
11.01Z101490	M-30T-OS	30,5	25,000	30,5	270	140	40	8.2
11.01Z101491	M-40T-0S	40,0	N/A	40,0	300	180	45	11.9
11.01Z101492	M-SOT-OS	50,0	N/A	50,0	300	200	50	15.3
11.01Z101493	M-65T-OS	65,0	N/A	65,0	350	200	55	20.7
11.01Z101494	M-90T-OS	90,00	N/A	90,0	450	250	70	42.7
11.01Z101495	M-125T- OS	125,0	N/A	125,0	450	260	80	57.5
