With brass washer / without ball bearing.

At least 25% greater WLL than traditional Grade 8 products.
Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.
Fatigue rated to 20,000 cycles at 1.5 times the WLL.
Magnaflux crack detection is performed 100% on each batch.

  • Material: Quenched and tempered alloy steel.
  • Marking: According to standard, All parts with batch number for quality certified and traceability.
  • Temperature range: Tempering temperature minimum 400°C.
  • Standard: EN 1677-2
  • Warning: This hook is a positioning device and is not intended to rotate under load. When using hoist hook with grade 100 chain, YOKEhoist hooks is recommended to be grinded the WLL (which is for a safety factor 5:1) off the hook.
  • Safety factor: 4:1
  • Grade: 10
Select a row from the table below, then click the add to quote button

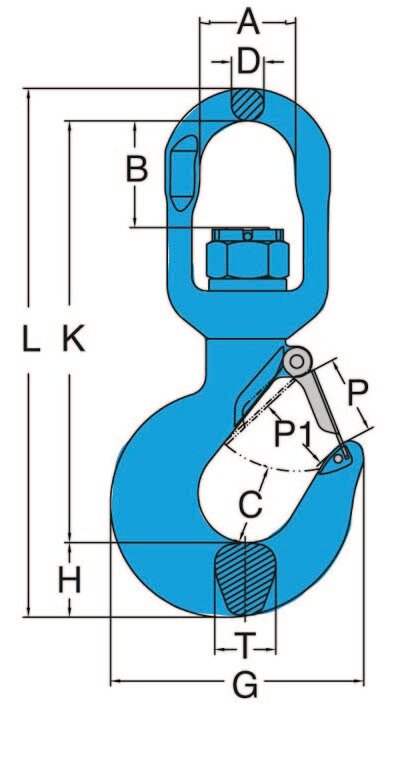

Part Code Code WLL
ton
For Grade 100 Chain
mm
A
mm
B
mm
C
mm
D
mm
G
mm
H
mm
K
mm
L
mm
P
mm
P1
mm
T
mm
Weight
kg
På forespørsel BB 1.4 6 32 23 25 12 80 21 126 158 24 19 18 0.7
På forespørsel CC 2.5 7, 8 36 29 26 13 91 25 143 181 24 20 22 0.9
På forespørsel DD 4 10 41 35 29 16 102 29 172 217 28 25 24 1.5
På forespørsel EE 6.7 13 46 44 38 21 130 36 211 269 35 31 31 3.2
På forespørsel FF 10 16 61 51 49 23 166 46 258 328 43 39 42 5.7
På forespørsel GG 16 20 74 82 62 25 196 58 326 409 61 57 48 9.5
På forespørsel HH 19 22 97 96 65 33 221 64 372 471 72 62 56 16.5
