Crosby

Features:

  • Proper design, careful forging and precision controlled quenched and tempering give maximum strength without excessive weight and bulk.
  • Hook extra marked with Deformation Indicators – Two strategically placed marks, one below just the shank or eye and the other on the hook tip, which allows for a QUIC-CHECKTM measurement to determine if the throat opening has changed, thus indicating abuse or overload. To check, use a measuring device to measure the distance between the marks. If the measurement does not meet the dimensions shown below (Deformation Indicator AA), the hook should be inspected further for possible damage.
  • Hook extra marked with Angle Indicators – Indicates the maximum included angle which is allowed between two (2) sling legs in the hook.
  • Also Available in Carbon steel Grade 4.
  • Material: Alloy steel
  • Marking: According to standard, CE-marked
  • Standard: EN 1677-2
  • Warning: From WLL 31.5 tons up to 60 tons safety factor = 4.5:1
  • Safety factor: 5:1
  • Grade: 8
Select a row from the table below, then click the add to quote button

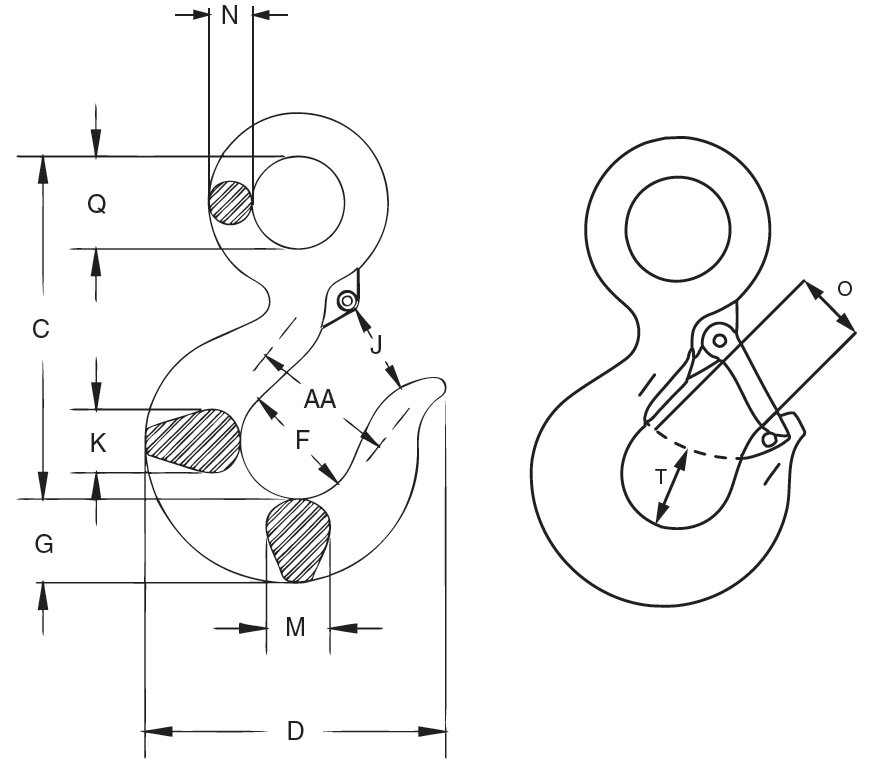

Part Code WLL
ton
C
mm
D
mm
F
mm
G
mm
J
mm
K
mm
M
mm
N
mm
O
mm
Q
mm
T
mm
Weight
kg
CAD
11.1010223804 1.25 85 72 31.8 18.5 22.9 16 16 9.14 22.6 19.1 22.1 0.28
11.101221094 1.6 97 79 35.1 21.3 23.6 18 18 10.7 23.1 23.1 24.9 0.4
11.1010224024 2.5 105 89.5 38.1 25.4 25,4 22.4 22.4 14 25.4 28.7 26.2 0.65
På forespørsel 3.2 119 101 41.4 28.7 28,7 23.9 23.8 14.7 27.7 31.8 29.5 0.94
På forespørsel 5.4 147 122 51 36.6 37.3 33.3 33.3 18.3 34.5 39.6 38.9 1.95
På forespørsel 8 187 159 63.5 46 44.5 42.2 42.2 22.9 40.9 51 49.8 3.76
På forespørsel 11.5 230 189 76 57 58 47.8 41.4 28.2 53 62.5 62.5 6.8
På forespørsel 16 256 211 82.5 66 63.5 55.5 49.3 32.3 57.5 72 66.5 9.42
På forespørsel 22 318 262 108 76 84 68.5 60.5 39.6 76.5 89 72 17.9
08.05S320A30 31.5 357 346 127 92 102 76 76.2 44.5 92.5 89 87.5 27.2
08.05S320A37 37 462 357 137 116 108 95.2 81 51 76 114 98.5 47.6
08.05S320A45 45 511 392 152 129 121 114 82.6 55.4 86 125 121 67
08.05S320A60 60 602 470 178 152 146 140 99.3 64.3 105 145 145 103
