Crosby

Features:
Hoist hooks incorporate markings forged into the product which address two (2) QUIC-CHECK® features:
• Deformation Indicators -- Two strategically placed marks, one just below the shank or eye and the other on the hook tip, which allows for a QUIC-CHECK® measurement to determine if the throat opening has changed, thus indicating abuse or overload.
• Angle Indicators — Indicates the maximum included angle which is allowed between two (2) sling legs in the hook. These indicators also provide the opportunity to approximate other included angles between two sling legs.

Model S-322: hook without latch

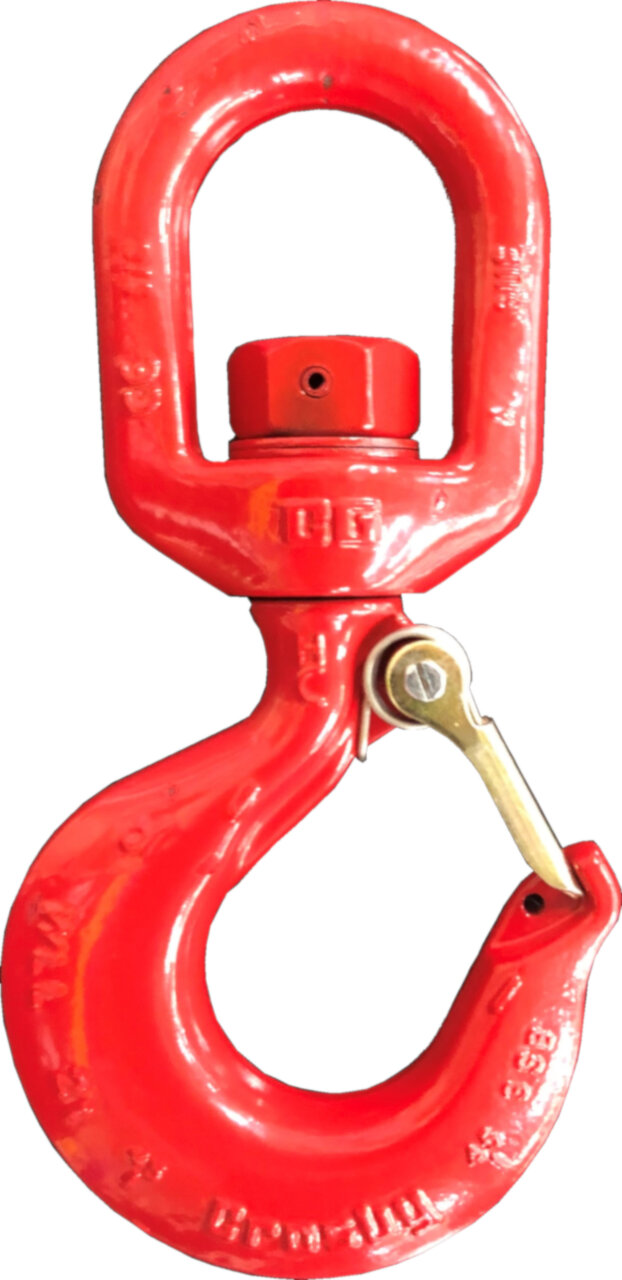

Model L-322: Hook with latch (Standard model, as shown)

  • Material: Alloy steel
  • Note: This hook is a positioning device and is not intended to rotate under load.
  • Safety factor: 4:1
  • Grade: 8
Crosby L322N
SHSm_225mm
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
A
mm
B (mm) C (mm) D
(mm)
F (mm) G (mm) H (mm) L (mm) O (mm) R (mm) S (mm) AA* (mm) Weight
kg
CAD
11.101048807 1.25 51 20.8 31.8 72.5 31.8 18.5 20.6 144 23.6 116 9.65 38.1 0.34
11.101048816 1.6 63.5 33.3 38.1 80 35.1 21.3 23.9 170 24.6 136 12.7 50.8 0.57
11.101048825 2.5 76 38.1 44.5 91 38.1 25.4 29.5 187 26.9 155 16 50.8 1.02
11.101048834 3.2 76 38.1 44.5 102 41.1 28.7 33.3 210 29.5 165 16 50.8 1.04
11.101048840 5.4 89 41.7 50.8 123 51 36.6 41.4 246 35.8 191 19.1 63.5 2.25
11.101048859 8 116 58 63.5 160 63.5 46 52.5 317 42.9 245 25.4 76.2 4.67
11.101048868 11.5 127 62 70 192 76 57 67 375 56.5 289 28.7 101 8.8
11.101048880 16 143 63 79 212 82.5 66 74.5 417 61 311 31.8 101 10.5
11.101048889 22 180 95.5 104 263 108 76 89 542 81 424 38.1 127 21.3
11.101025688 ** 31.5 180 95.5 104 346 127 93 118 590 82.6 459 38.1 165 32

* Deformation indicators
** Standard only available without latch. Latch optional available (PL latchkit)
