Crosby








  • Material: Alloy steel grade 8.
  • Marking: : Code and grade.
  • Finish: Painted.
  • Safety factor: 4:1.
  • Grade: 8
ML320A Crosby hook with eye
Crosby
kwb_LHLXm_225mm
Select a row from the table below, then click the add to quote button

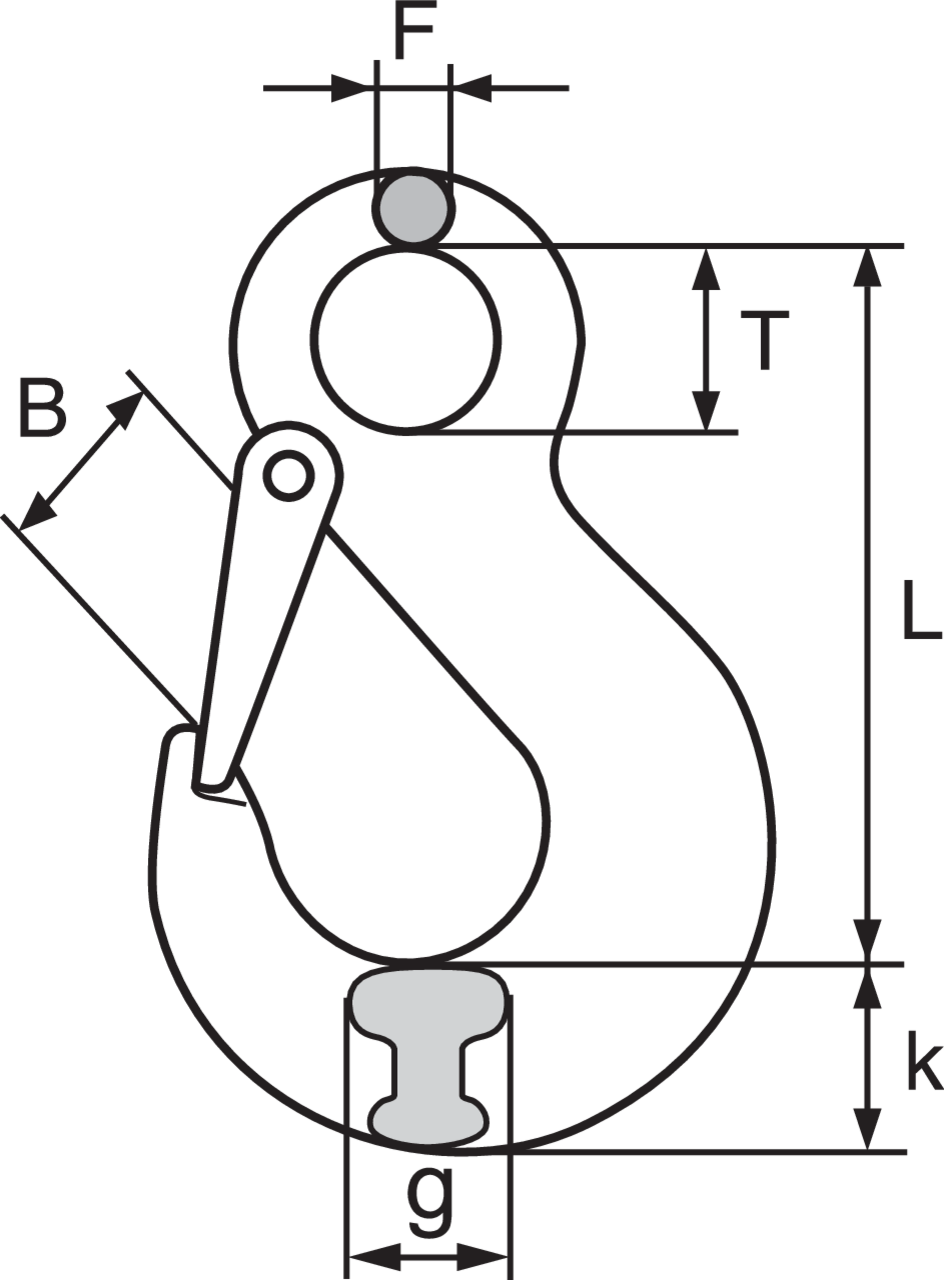

Part Code WLL
ton
G (mm) B (mm) F (mm) L (mm) T (mm) k (mm) Weight
kg
CAD
11.1010223804 1.25 16,0 22,6 9,14 85,0 19,1 18,5 0.28
11.101221094 1.6 18,0 23,1 10,7 97,0 23,1 21,3 0.4
11.1010224024 2.5 22,4 25,4 14,0 105 27,7 25,4 0.65
2070004 3.2 23,8 27,7 14,7 119 31,8 28,7 0.94
2070005 5.4 33,3 34,5 18,3 147 39,6 36,6 1.95
2070006 8 42,2 40,9 22,9 187 51,0 46,0 3.76
2070007 11.5 41,4 53,0 28,2 230 62,0 57,0 6.8
2070008 16 49,3 57,5 32,3 256 72,0 66,0 9.42
2070009 22 60,5 76,5 39,6 318 89,0 76,0 17.9
2070010 31.5 76,2 82,5 44,5 357 89,0 92,0 27.2
2070011 37 81,0 76,0 51,0 462 114 116 47.6
2070012 45 82,6 86,0 55,4 511 125 129 67
2070013 60 99,3 105 64,3 602 145 152 103
