Crosby

Genera: Pad eyes are provided on either side of hook as cable guide. The cable is passed through a hole drilled in the latch
that assists in allowing the "remotely operated" cable to open latch.



  • Material: Alloy steel grade 8.
  • Marking: Code
  • Finish: Painted with fluorescent yellow.
  • Safety factor: 4:1.
  • Grade: 8
Crosby L320R_rov

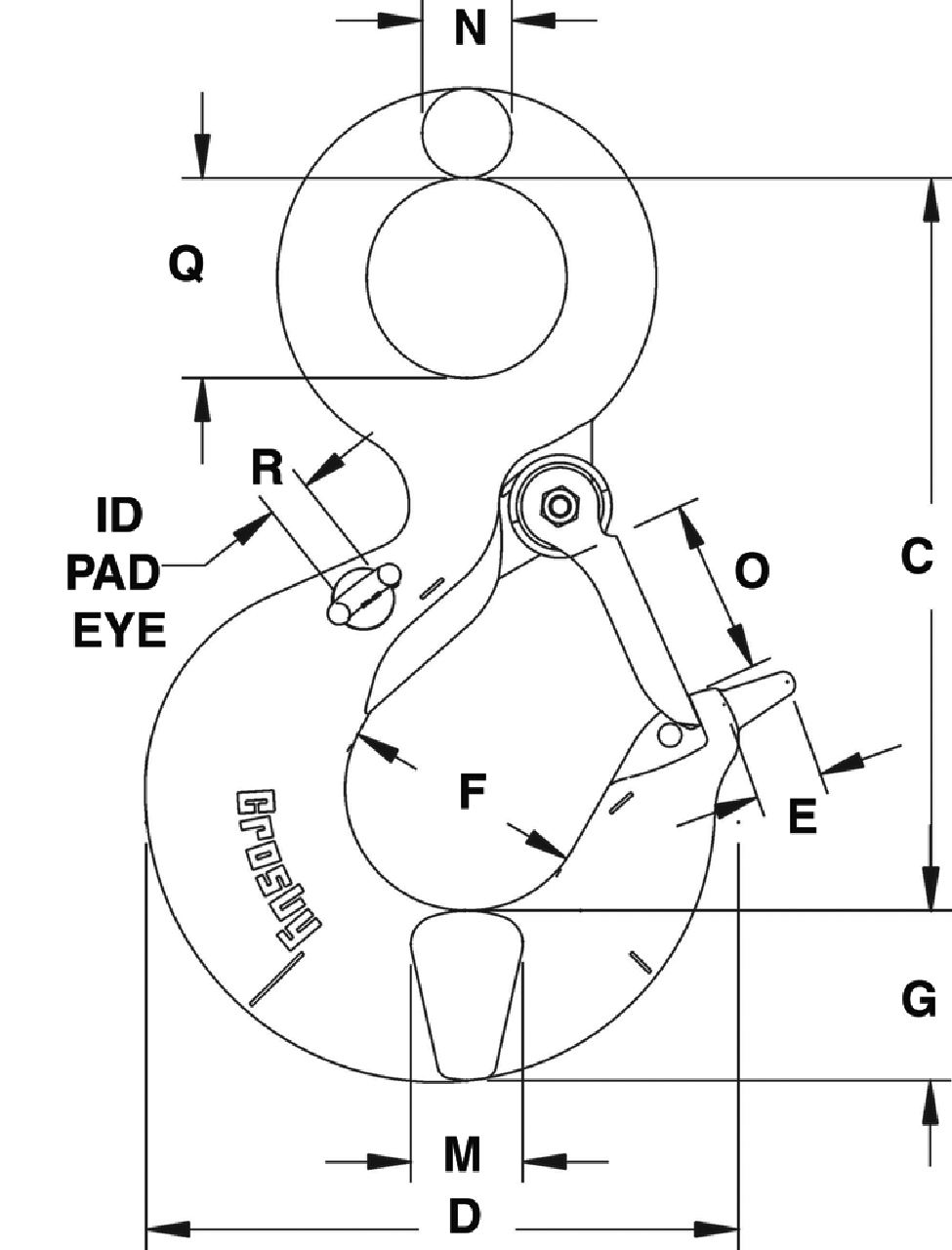

L320dwg
Select a row from the table below, then click the add to quote button
WLL
ton
N (mm) O (mm) D (mm) C (mm) E (mm) Q (mm) F (mm) M (mm) G (mm) R (mm) Weight
kg
CAD
3.2 15 28 101 119 25 32 41 24 29 6 1.01
5.4 18 35 122 147 25 40 51 33 37 6 2.04
8 23 41 159 187 35 51 64 42 46 10 3.92
11.5 28 53 189 230 35 62 76 41 57 10 7.02
16 32 58 211 256 35 72 83 49 66 10 10.1
22 40 77 262 318 45 89 108 60 76 19 18.4
31.5 44 86 346 357 89 127 76 92 19 28.1
37 51 95 357 462 114 137 81 116 19 48.5
45 55 125 392 511 125 152 82 129 19 62.1
60 64 130 470 602 145 178 99 152 19 102
