Gunnebo Industries




WARNING! Not to be heat treated.





  • Material: Quenched and tempered alloy steel grade 10.
  • Marking: Code and grade.
  • Finish: Painted.
  • Safety factor: 4:1.
  • Grade: 10
Select a row from the table below, then click the add to quote button
Code WLL
ton

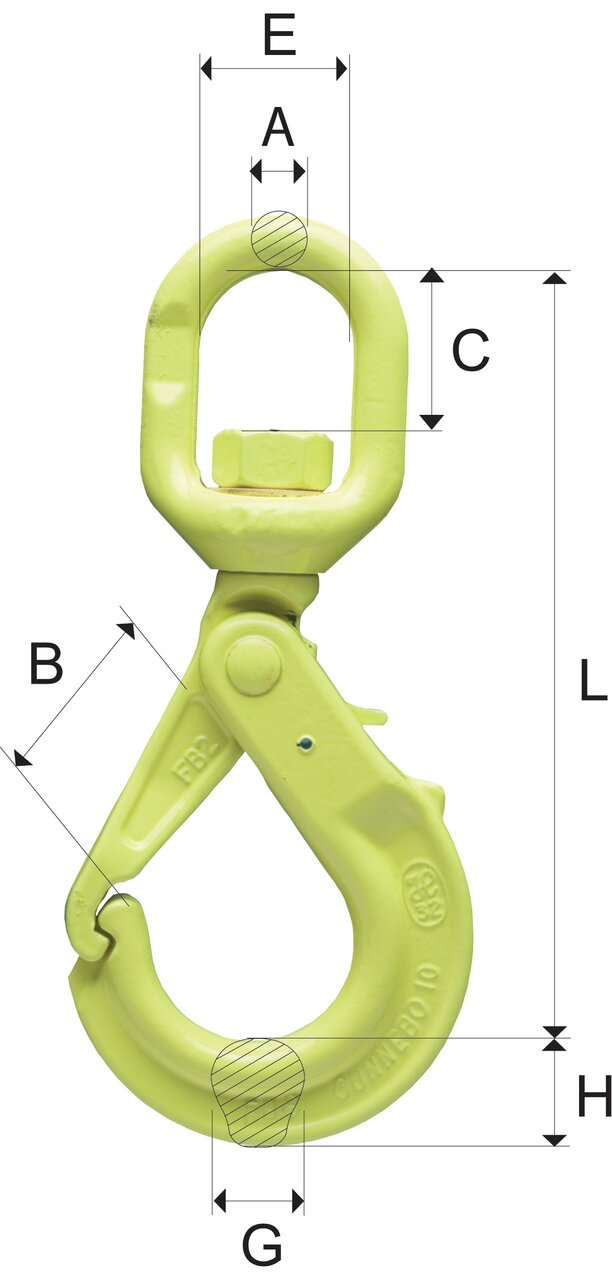

L (mm) B (mm) C (mm) E (mm) A (mm) G (mm) H (mm) Weight
kg
CAD
LKBK-7/8-10 2.5 176 37 27 38 12 20 22 1.2
LKBK-10-10 4 213 47 35 44 15 22 29 1.9
LKBK-13-10 6.7 261 53 43 48 19 29 38 3.6
LKBK-16-10 10 323 68 61 61 25 30 45 6.2
