WARNING! Not to be heat treated.



  • Material: Quenched and tempered alloy steel grade 10.
  • Marking: Code and grade.
  • Finish: Painted.
  • Safety factor: 4:1.
  • Grade: 10
Select a row from the table below, then click the add to quote button

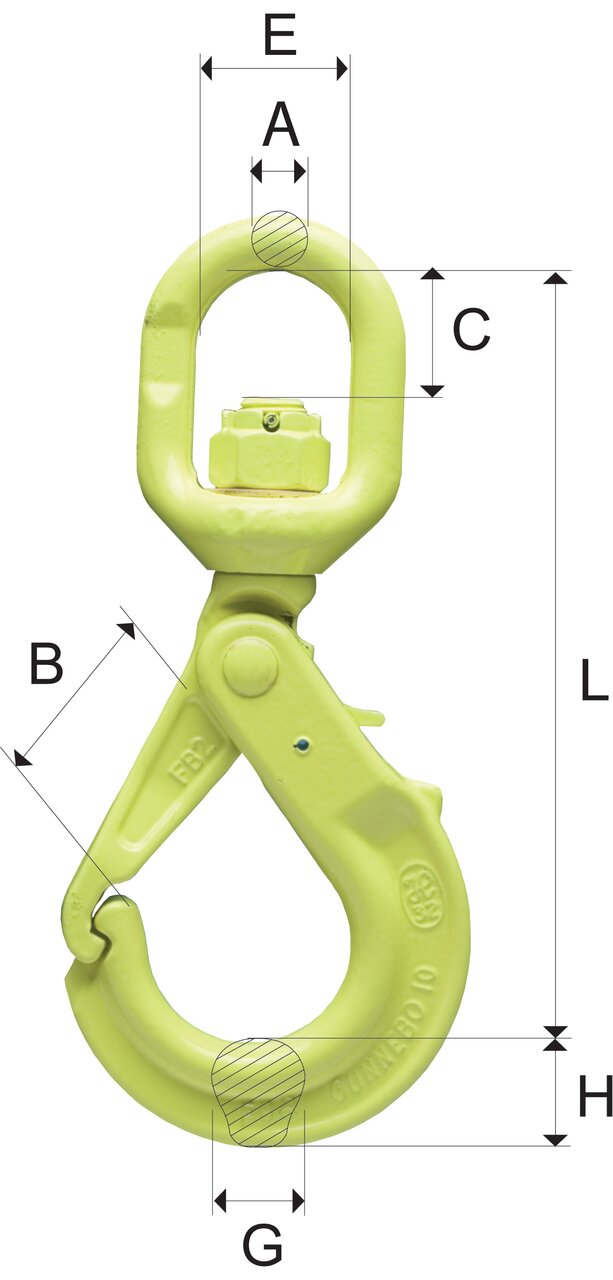

Code WLL
ton
L
mm
B
mm
C
mm
E
mm
A
mm
G
mm
H
mm
Weight
kg
CAD
LBK-7/8-10 2.5 177 37 27 38 12 20 22 1.1
LBK-10-10 4 214 47 37 44 15 22 29 2
LBK-13-10 6.7 262 53 45 48 19 29 38 3.5
LBK-16-10 10 324 68 66 61 25 30 45 5.9
