Gunnebo Industries
  • Material: Quenched and tempered alloy steel grade 10.
  • Marking: Code and grade.
  • Finish: Painted.
  • Warning: Not to be heat treated.
  • Safety factor: 4:1.
  • Grade: 10
Select a row from the table below, then click the add to quote button

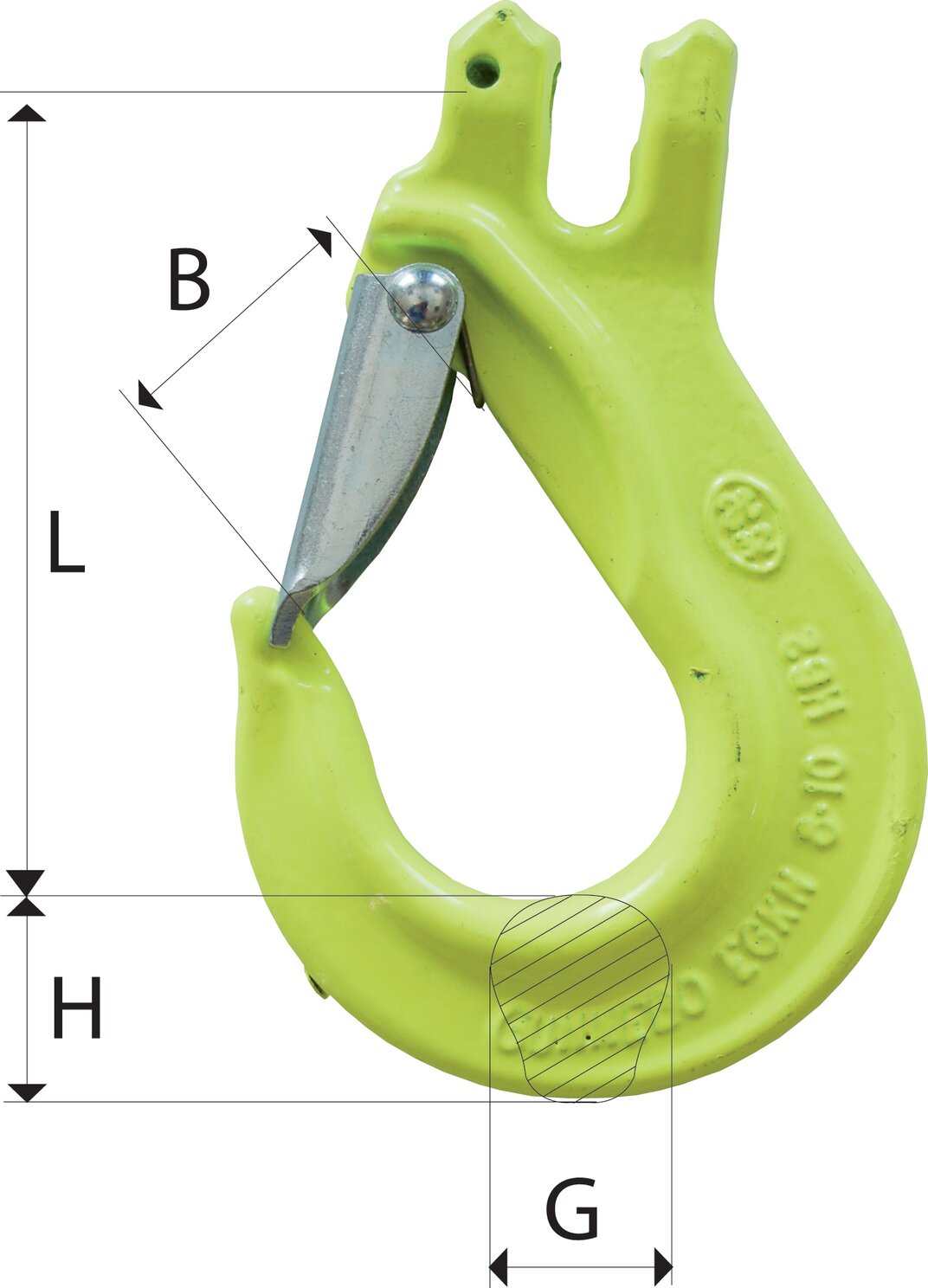

Part Code Code WLL
ton
L
mm
B
mm
G
mm
H
mm
Weight
kg
CAD
11.11B14460 EGKN-6-10 1.5 86 24,5 17 20 0.4
11.11B14461 EGKN-8-10 2.5 95 28 17 23 0.5
11.11B14462 EGKN-10-10 4 121 35 23 31 1.1
11.11B14463 EGKN-13-10 6.7 145 42 28 38 2.2
11.11B14464 EGKN-16-10 10 170 52 36 46 4
11.11Z101127 EGKN-20-10 16 209 61 42 60 7.6
