Gunnebo Industries





  • Material: Quenched and tempered alloy steel grade 10.
  • Marking: According to standard, Code and grade.
  • Finish: Painted.
  • Standard: EN 1677-1
  • Warning: Not to be heat treated.
  • Safety factor: 4:1.
  • Grade: 10
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton

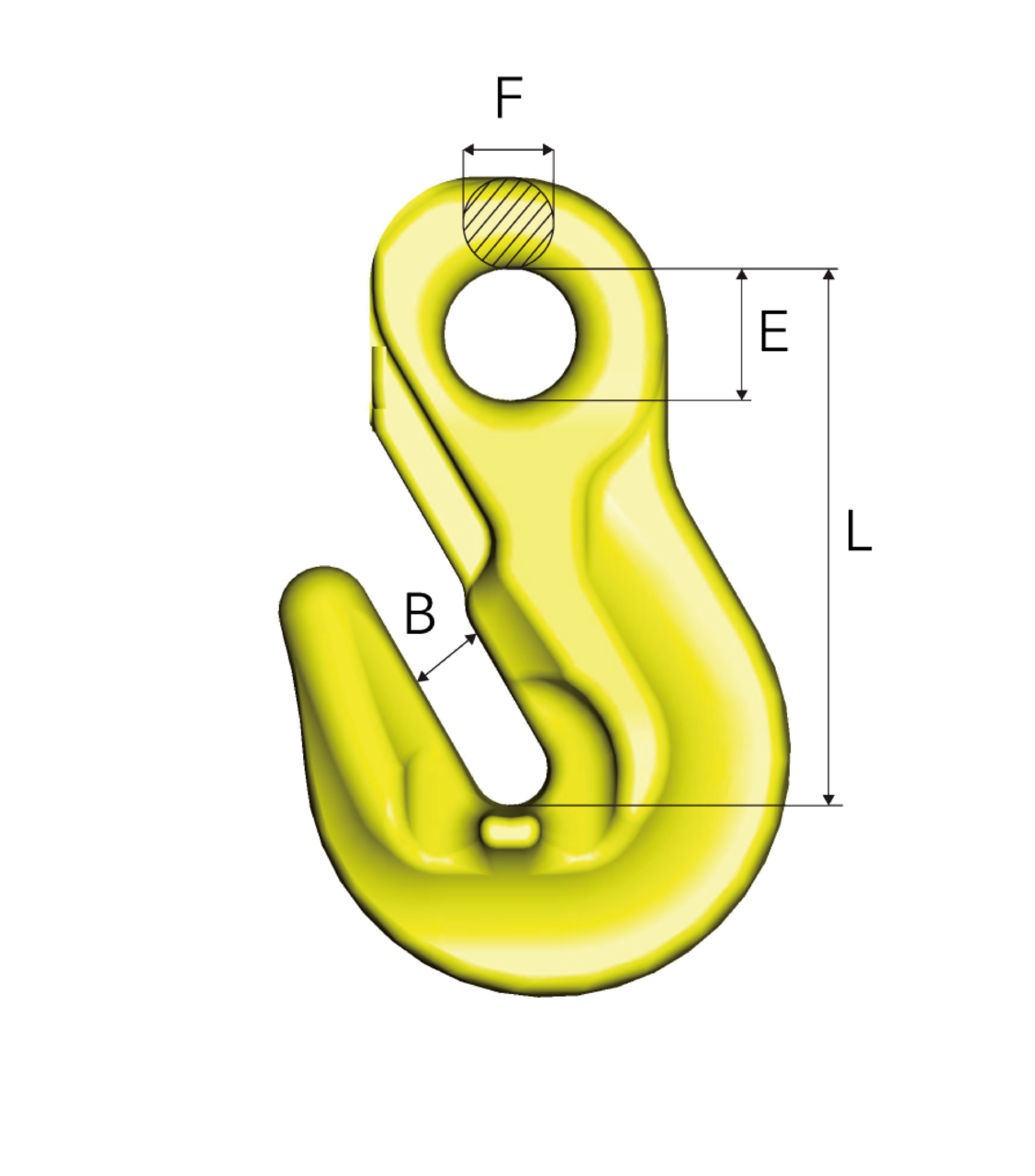

L (mm) B (mm) E (mm) F (mm) Weight
kg
CAD
11.21Z101296 OG-7/8-10 2.5 65 10,5 17 12 0.3
11.21Z101297 OG-10-10 4 85 12 20 16 0.7
11.21Z101298 OG-13-10 6.7 104 16,2 26 22 1.6
11.21Z101299 OG-16-10 10 131 20 32 24 2.8
11.21Z101300 OG-20-10 16 167 26,4 41 28 6.1
11.21Z101301 OG-22-10 20 187 26 46 32 8.6
11.21Z101302 OG-26-10 27 228 32 55 38 14
11.21Z101303 OG-32-10 40 229 40 82 37 20.7
