General: Chain for lifting.


Standard: Dimension DIN 766.



  • Material: AISI 316.
  • Marking: One link per m chain is marked with grade.
  • Grade: 5
Kl_ss_new_225mm
KLM_e_225mm
Select a row from the table below, then click the add to quote button
Part Code Code Diameter
mm
WLL
ton
Min. breakingforce
kN

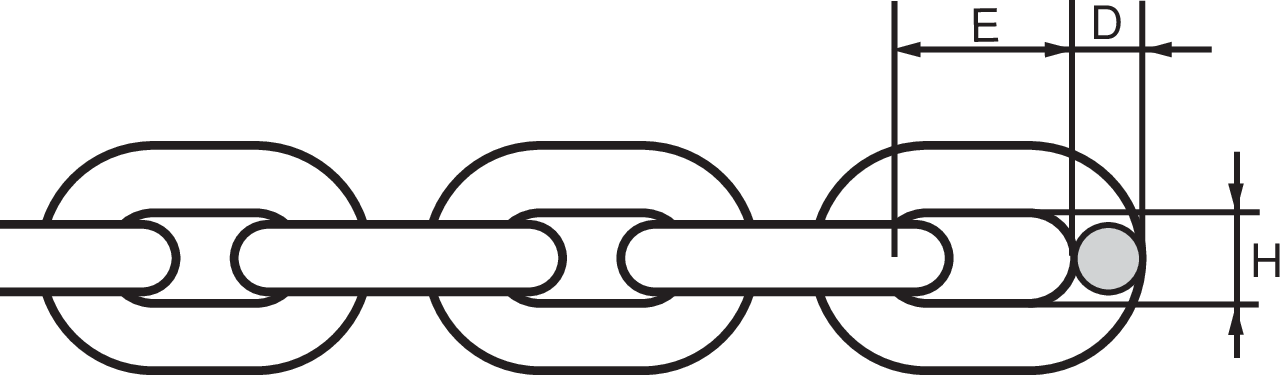

Breaking force (kN) D
mm
E
mm
H
mm
Weight
kg/m
CAD
11.63766050S KLR-5-D5 5 0.5 19.6 19,6 5 18,5 7 0.5
11.63766070S KLR-7-D5 7 1 38.5 38,5 7 22 9 1
11.63766100S KLR-10-D5 10 2 78.5 78,5 10 28 14 2.3
11.63766130S KLR-13-D5 13 3.3 132.7 132,7 13 36 18 3.8
11.63766160S KLR-16-D5 16 5 201 201 16 45 22 5.8
* For lifting application safety factoy. 4:1.

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
