Gunnebo Industries

Approval: DNV 2.7-1 and DNV 2.7-3

  • Material: Quenched and tempered alloy steel grade 8+ OS.
  • Marking: Code and grade.
  • Finish: Painted.
  • Safety factor: 5:1.
Select a row from the table below, then click the add to quote button

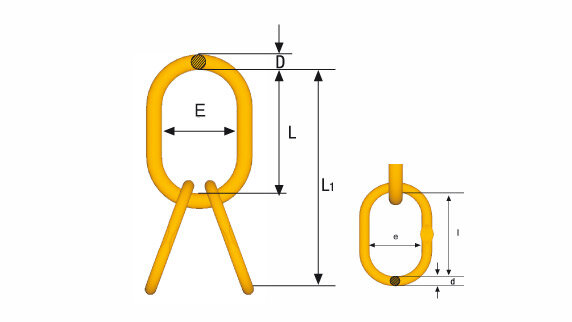

Part Code Code Working Load Limits DNV 2.7-1 tonnes Working Load Limits DNV 2.7-1 Max container rating kgs Working Load Limits EN-1677-4 SF 5:1 tonnes L1
mm
L
mm
E
mm
D
mm
l
mm
e
mm
d
mm
Weight
kg
CAD
På forespørsel MT-9T-OS 9,0 5,000 9,0 430 270 140 25 160 95 22 6
På forespørsel MT-12T-OS 12,5 7,500 12,5 430 270 140 28 160 95 25 7.8
På forespørsel MT-18T-OS 18,5 12,500 18,5 460 270 140 32 190 110 28 10.8
På forespørsel MT-24T-OS 24,0 21,000 24,0 540 270 140 36 270 140 32 16.7
På forespørsel MT-30T-OS 30,5 25,000 30,5 540 270 140 40 270 140 36 21.2
På forespørsel MT-40T-OS 40,0 N/A 40,0 570 300 100 45 270 140 40 28.3
På forespørsel MT-50T-OS 50,0 N/A 50,0 600 300 200 50 300 180 45 39.1
På forespørsel MT-65T-OS 65,0 N/A 65,0 650 350 200 55 300 200 50 51.2
