WARNING! Not to be heat-treated.

  • Material: Alloy steel grade 10.
  • Marking: Code and grade.
  • Finish: Painted.
  • Safety factor: 4:1.
  • Grade: 10
kwb_A_S_225mm
Select a row from the table below, then click the add to quote button

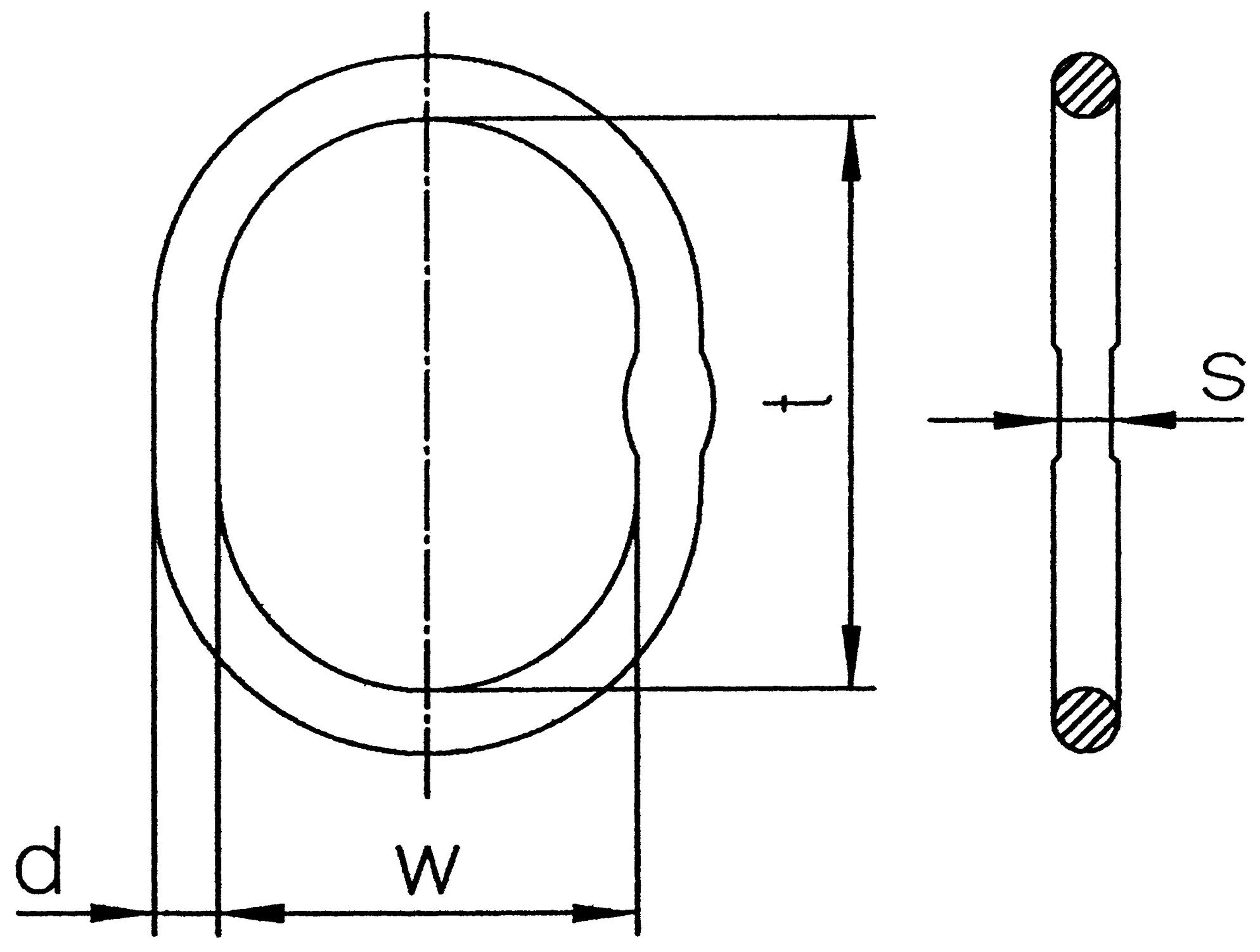

Part Code Code WLL
ton
s
mm
w
mm
D
mm
t
mm
Weight
kg
CAD
07.01TS16.10 T/S-16-10 3.2 13 80 16 140 0.67
07.01TS18.10 T/S-18-10 4.2 14 95 19 160 1.1
07.01TS22.10 T/S-22-10 6.7 17 105 23 170 1.7
07.01TS26.10 T/S-26-10 10.1 20 110 27 190 2.7
07.01TS32.10 T/S-32-10 16 26 130 33 230 4.8
07.01TS36.10 T/S-36-10 21.2 29 150 38 275 7.5
07.01TS56.10 T/S-56-10 40 - 250 56 350 22
