Gunnebo Industries





  • Material: Quenched and tempered alloy steel.
  • Marking: Code and grade.
  • Finish: Painted.
  • Warning: Not to be heat treated.
  • Safety factor: 4:1
  • Grade: 10
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton

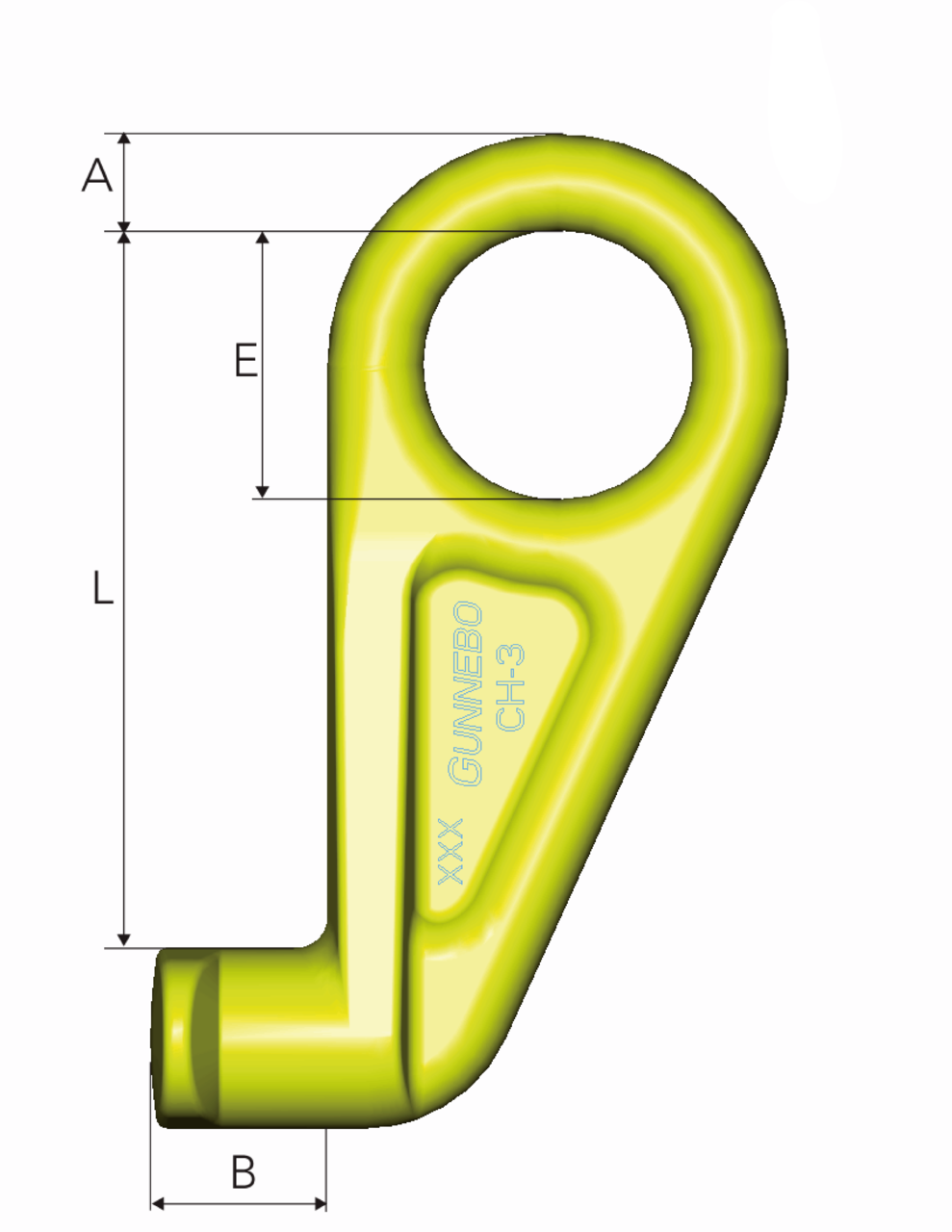

A
mm
L
mm
B
mm
H
mm

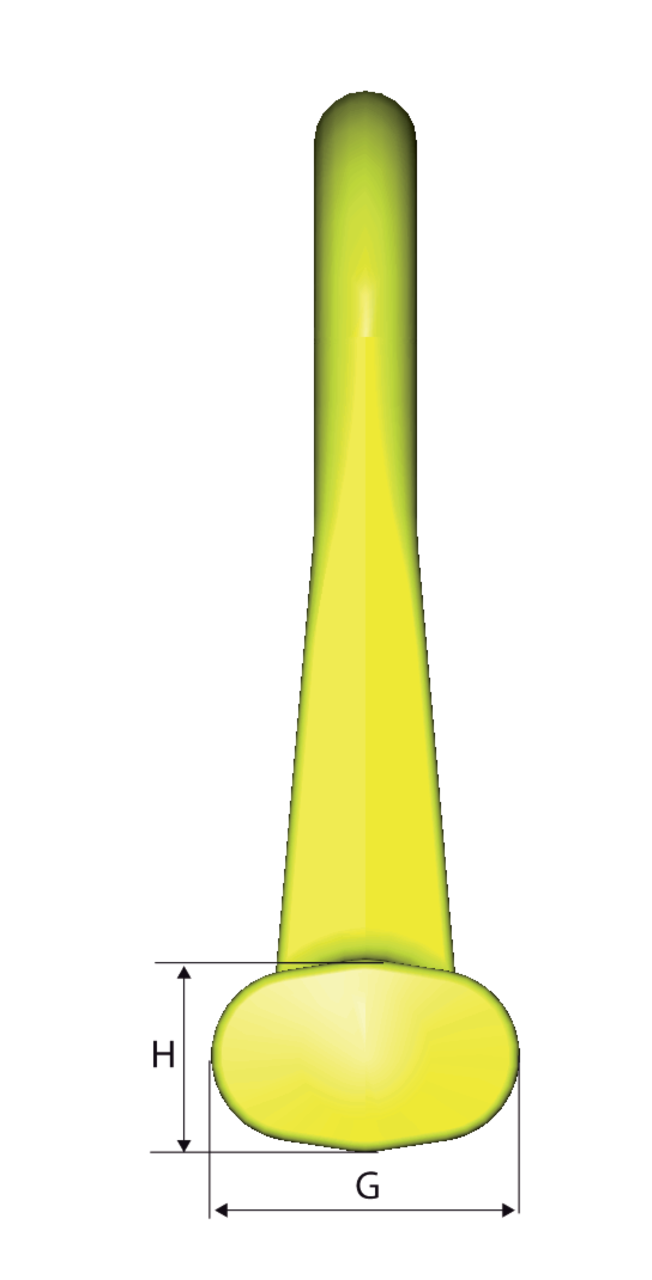

G
mm
E
mm
Weight
kg
CAD
11.27Z101220 CH-3 12.5 25 187 70 46 47 75 3.8
11.27Z101221 CH-3, 45° left 12.5 25 187 70 46 47 75 3.8
11.27Z101219 CH-3, 45° right 12.5 25 187 70 46 47 75 3.8

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
