Stainless steel lifting chain, electrically welded and stamped, guaranteed compatible with Connex CWI connectors.

Standard: Similar DIN 5687-1

The WOX chain is particularly suited for use in water and wastewater applications. It can also be used in connection with chemicals and food products; however, restrictions will apply.

  • Material: 1.4404 (AISI 316L).
  • Marking: According to standard
  • Finish: Brightly polished.
  • Standard: EN 818-2
  • Safety factor: 4:1
  • Grade: 6
WOX Kette G6
Select a row from the table below, then click the add to quote button
Part Code Code Diameter
mm
WLL
ton
Min. breaking force
kN
MBL
t

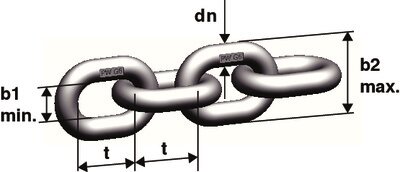

Nominal dia. dn
mm
Inside width b1 min
mm
Outside width b2 max.
mm
t
mm
Weight
kg/m
CAD
På forespørsel WOX 4-6 4 0.4 16 1.6 4 5,8 14,8 12 0.4
På forespørsel WOX 5-6 5 0.63 25 2.6 5 7,5 18,5 15.1 0.61
På forespørsel WOX 6-6 6 0.9 37.5 3.8 6 8 21,5 18 0.88
På forespørsel WOX 7-6 7 1.25 50 5.1 7 9,5 25,2 21 1.19
På forespørsel WOX 8-6 8 1.6 63 6.4 8 10,8 28,6 24 1.53
På forespørsel WOX 10-6 10 2.5 100 10.2 10 13,5 36,0 30 2.4
På forespørsel WOX 13-6 13 4.25 170 17.3 13 17,5 46,8 39 4.05
På forespørsel WOX 16-6 16 6.3 250 25.5 16 21,5 57,6 48 6
På forespørsel WOX 20-5* 20 8 314 32 20 27 72 60 9.29
På forespørsel WOX 26-4+** 26 12 471 48 26 35 93,6 78 16.2
* WOX 20-5 is grade 5
** WOX 26-4+ is grade 4+

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
